As we talked about the dining area in their new home, the first step was to create about eight feet of bench seating under the front window, and the custom table we were planning would span almost that length. In any home, storage is important, so we settled on storage banquettes to provide plenty of seating and convenient storage. This project ended up using much of the remaining two-inch-thick white ash from Kara’s platform bed project a few years ago. Once in place under their front window, these banquettes have become a favorite sitting place for family meals, homework, and artwork, too!
As I look back on this project, I’m reminded of the importance of thoughtful design and creative problem-solving in woodworking. By repurposing the remaining white ash from Kara’s earlier project, we not only reduced waste but also added a unique touch to the space. The banquettes have become a beloved hub in the home, where family and friends can gather, relax, and enjoy each other’s company. Their versatility has also made them a favorite spot for everyday activities, from homework and meals to art projects and quiet conversations. In the end, this project was a perfect example of how a well-designed and well-built piece of furniture can become a true centerpiece of a home.

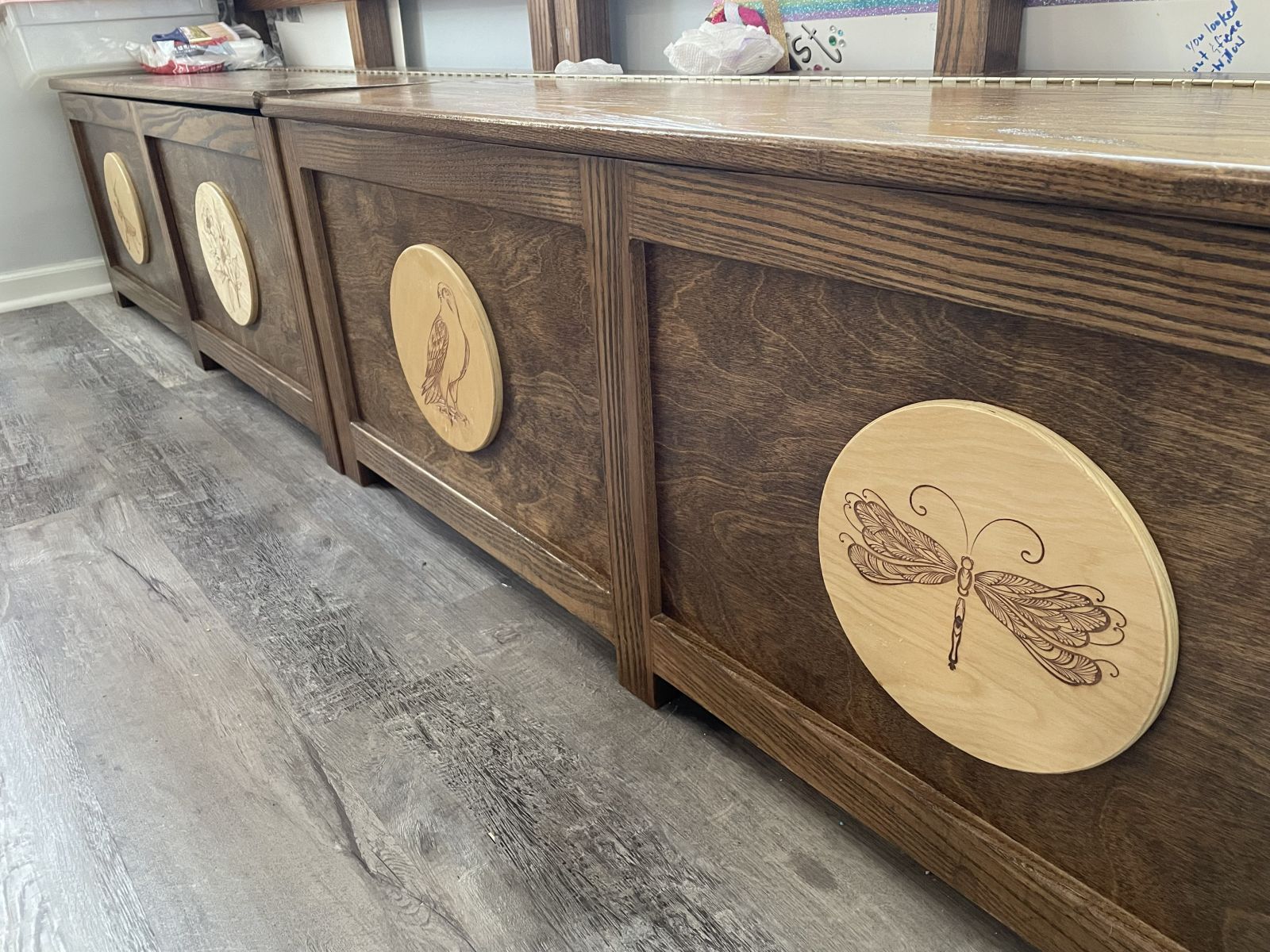

Finished banquettes with custom medallions installed
Finished banquettes with custom medallions installed

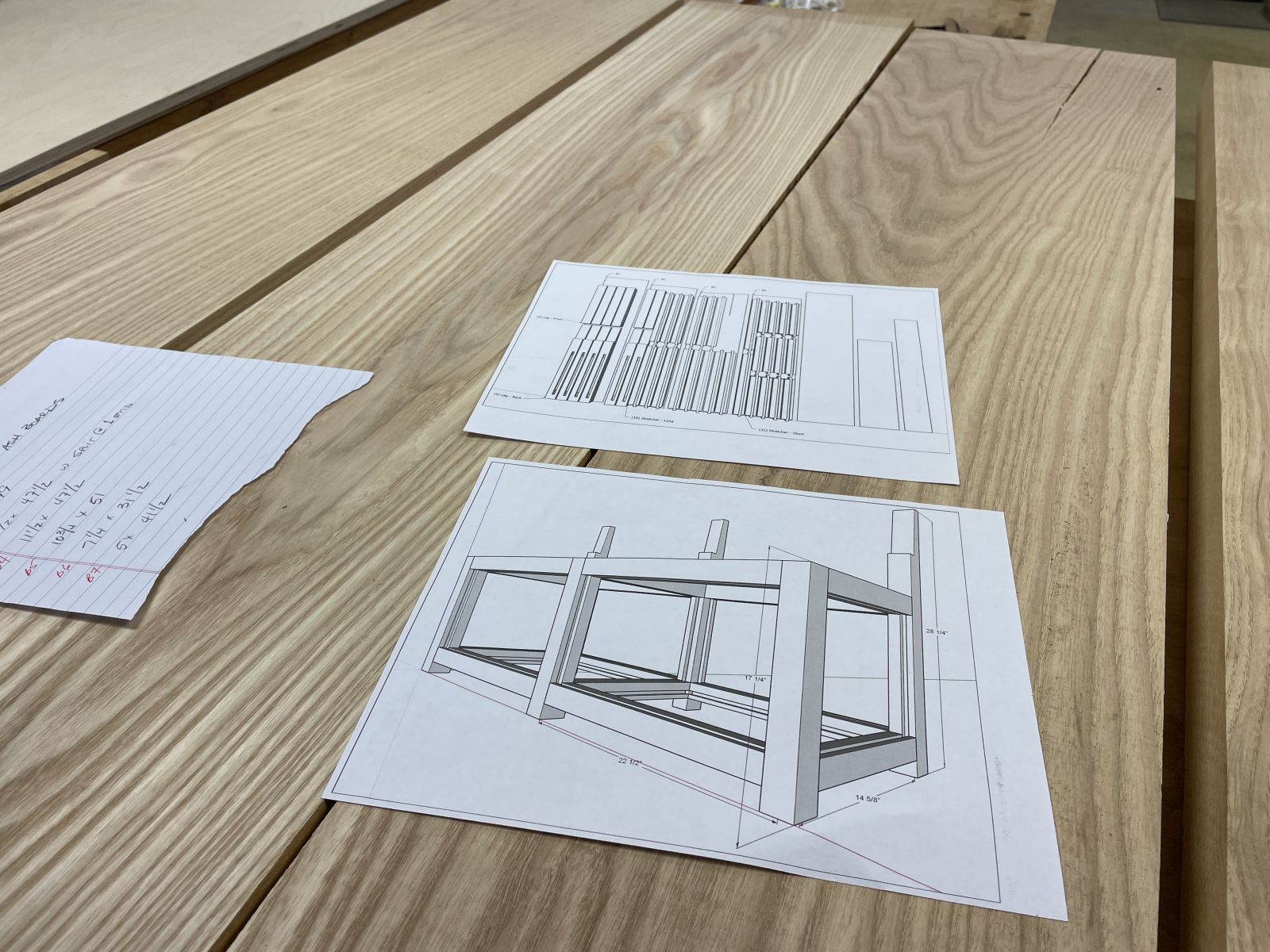

Raw white ash and cut list
Raw white ash and cut list

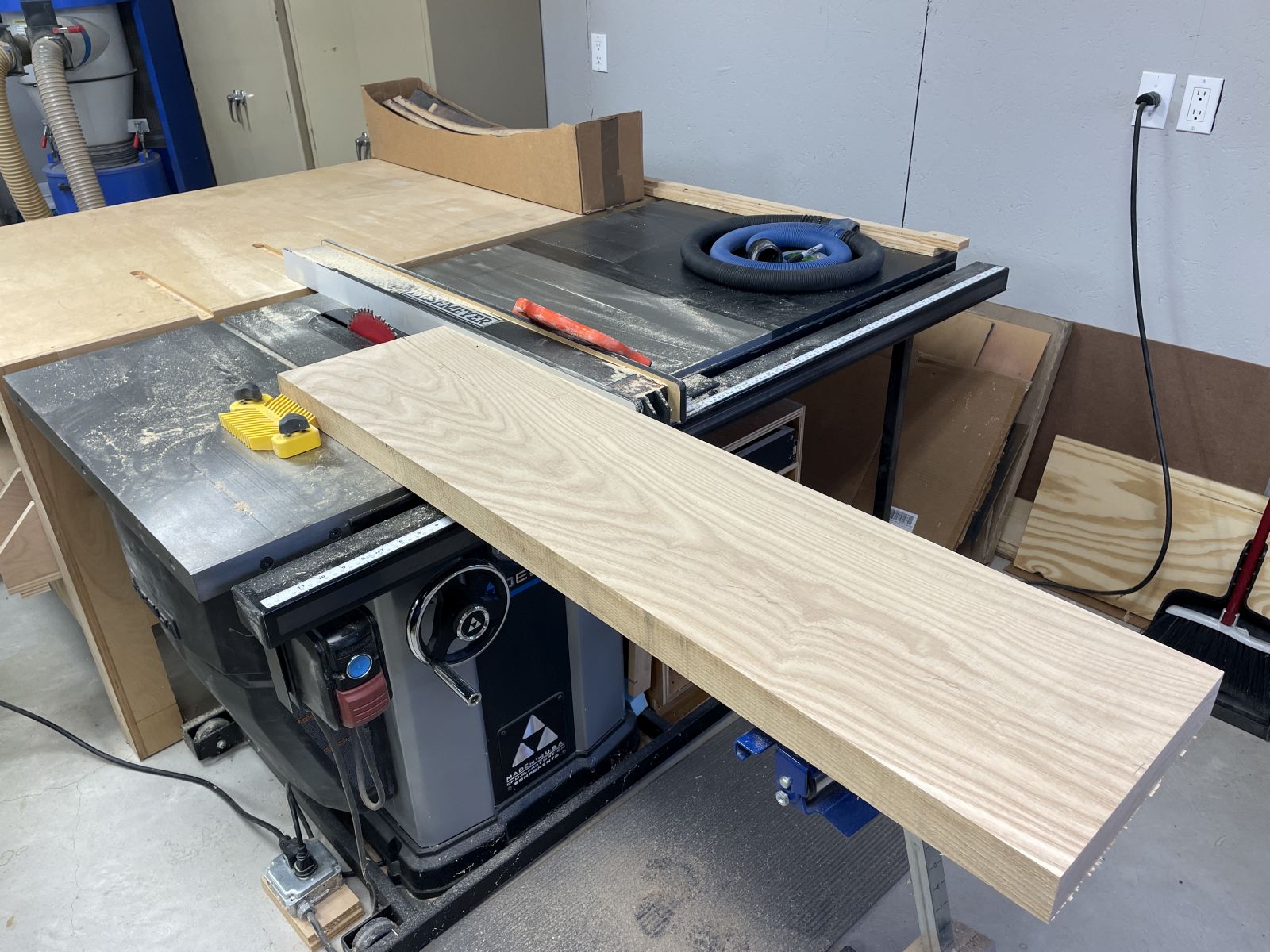

Breaking down 2″ thick white ash
Breaking down 2″ thick white ash
Solid 2″ x 2″ white ash ready to be cut to lengths
Solid 2″ x 2″ white ash ready to be cut to lengths

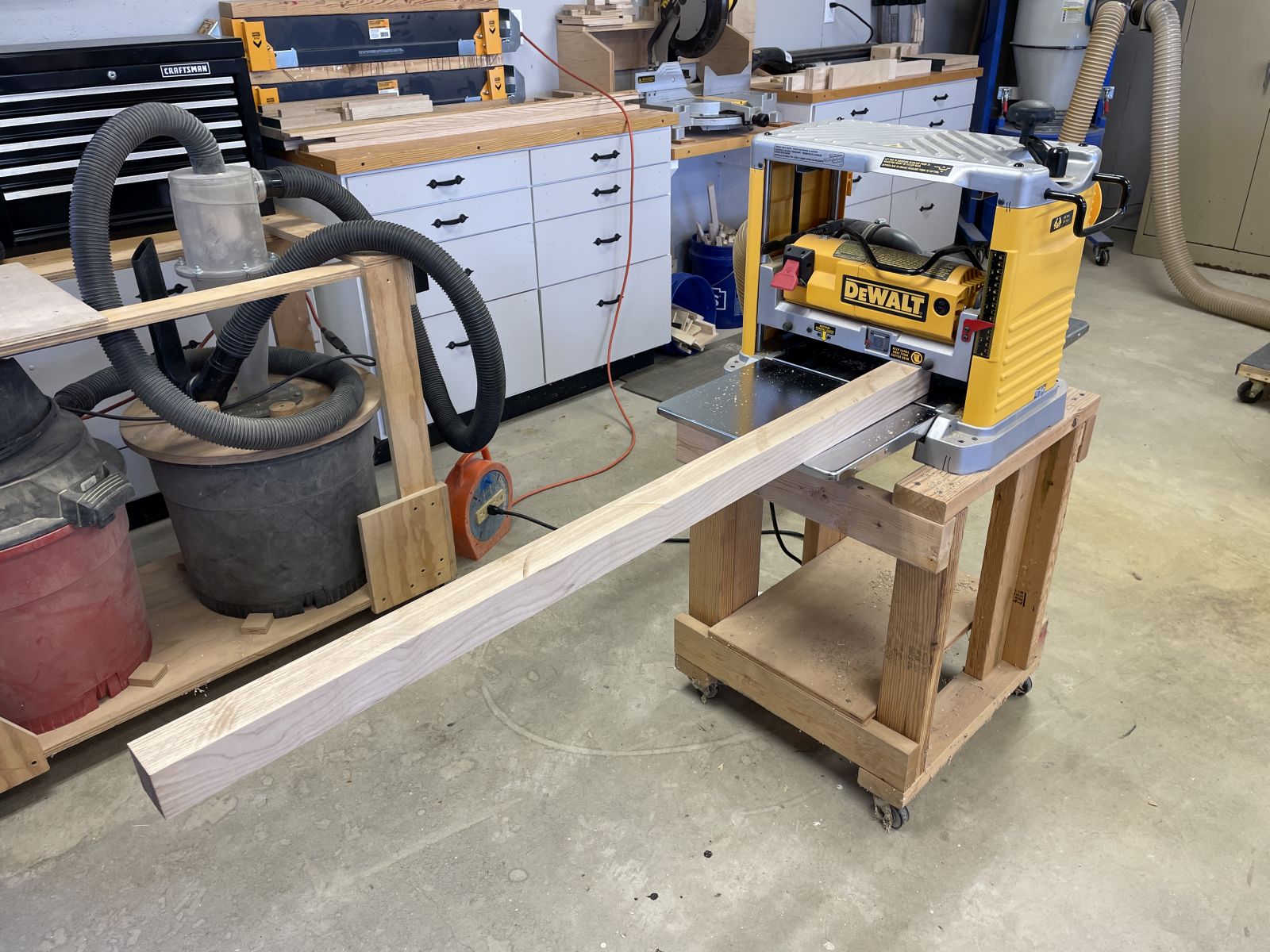

Planing the 2″ x 2″ square blanks
Planing the 2″ x 2″ square blanks

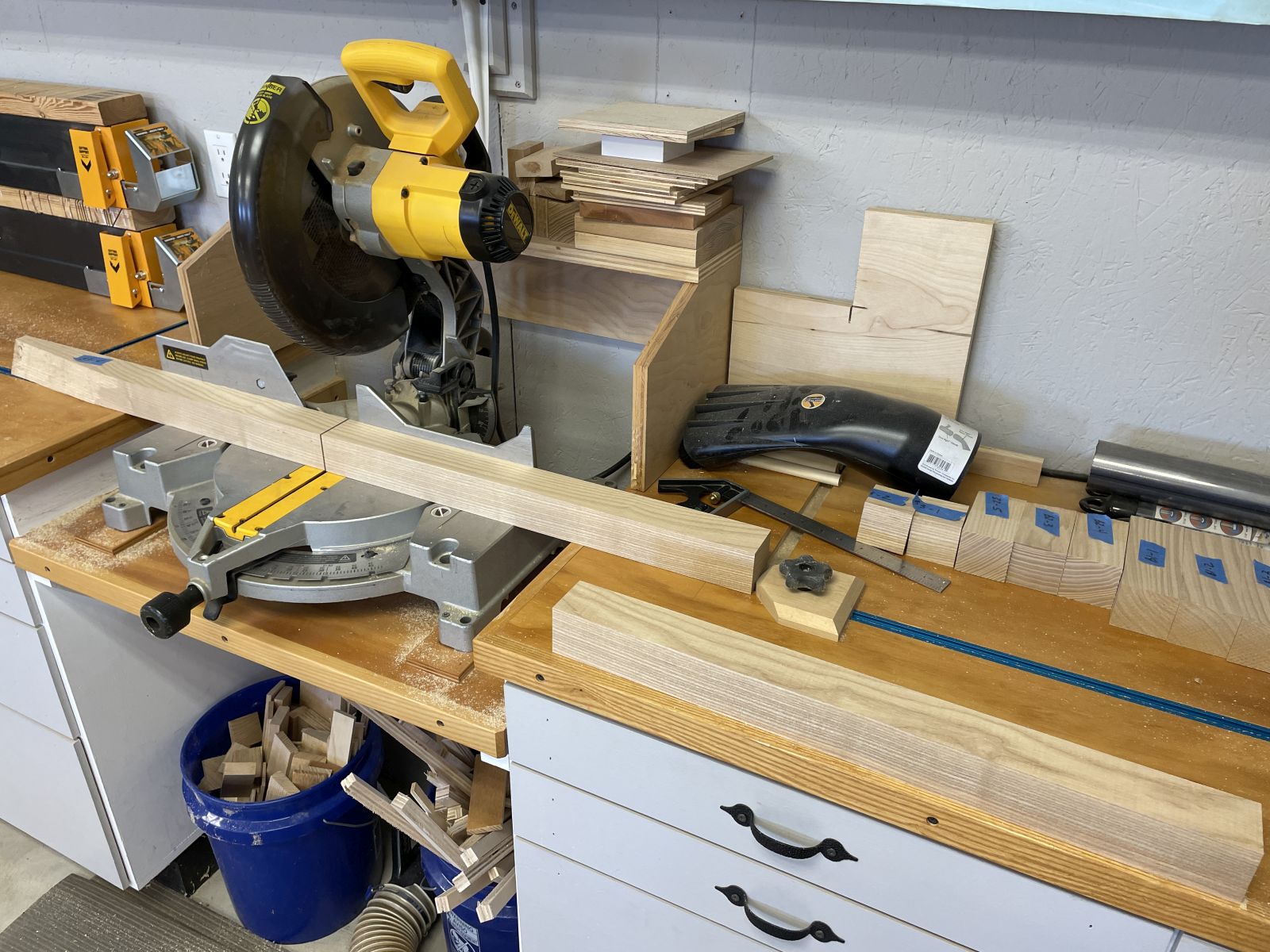

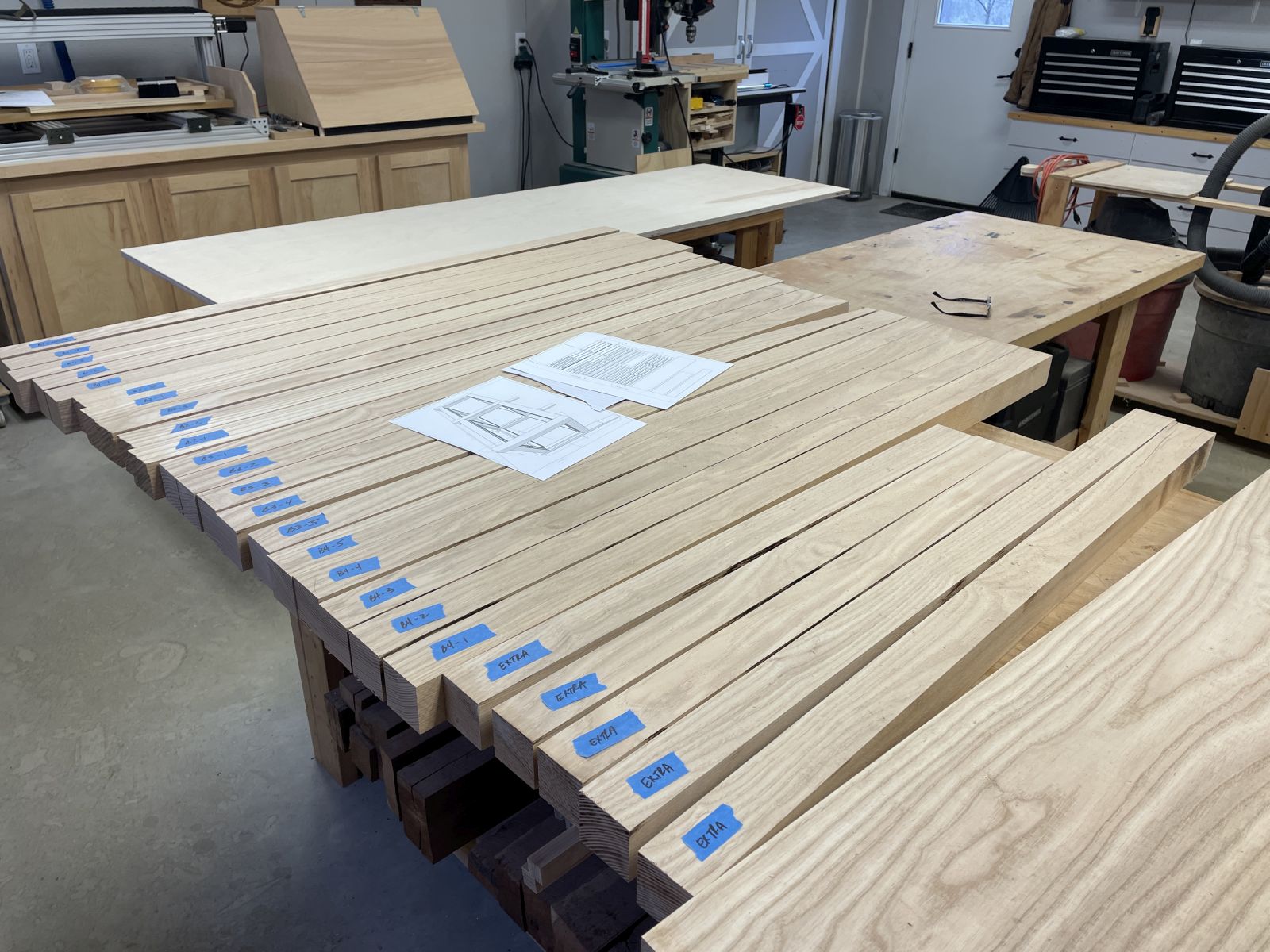

Cutting the 2″ x 2″ blanks to length
Cutting the 2″ x 2″ blanks to length

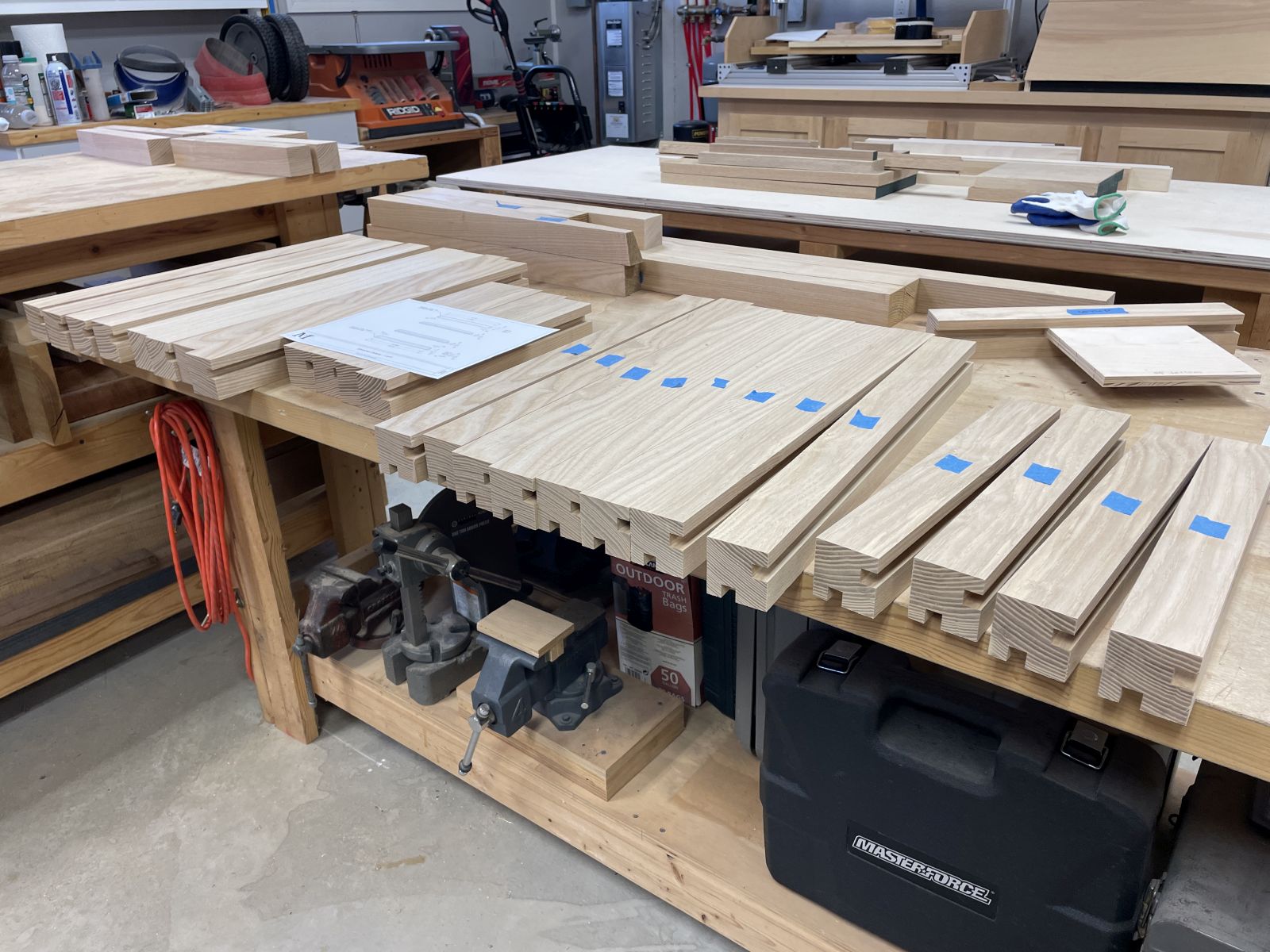

2″ x 2″ frame members with dadoes cut
2″ x 2″ frame members with dadoes cut

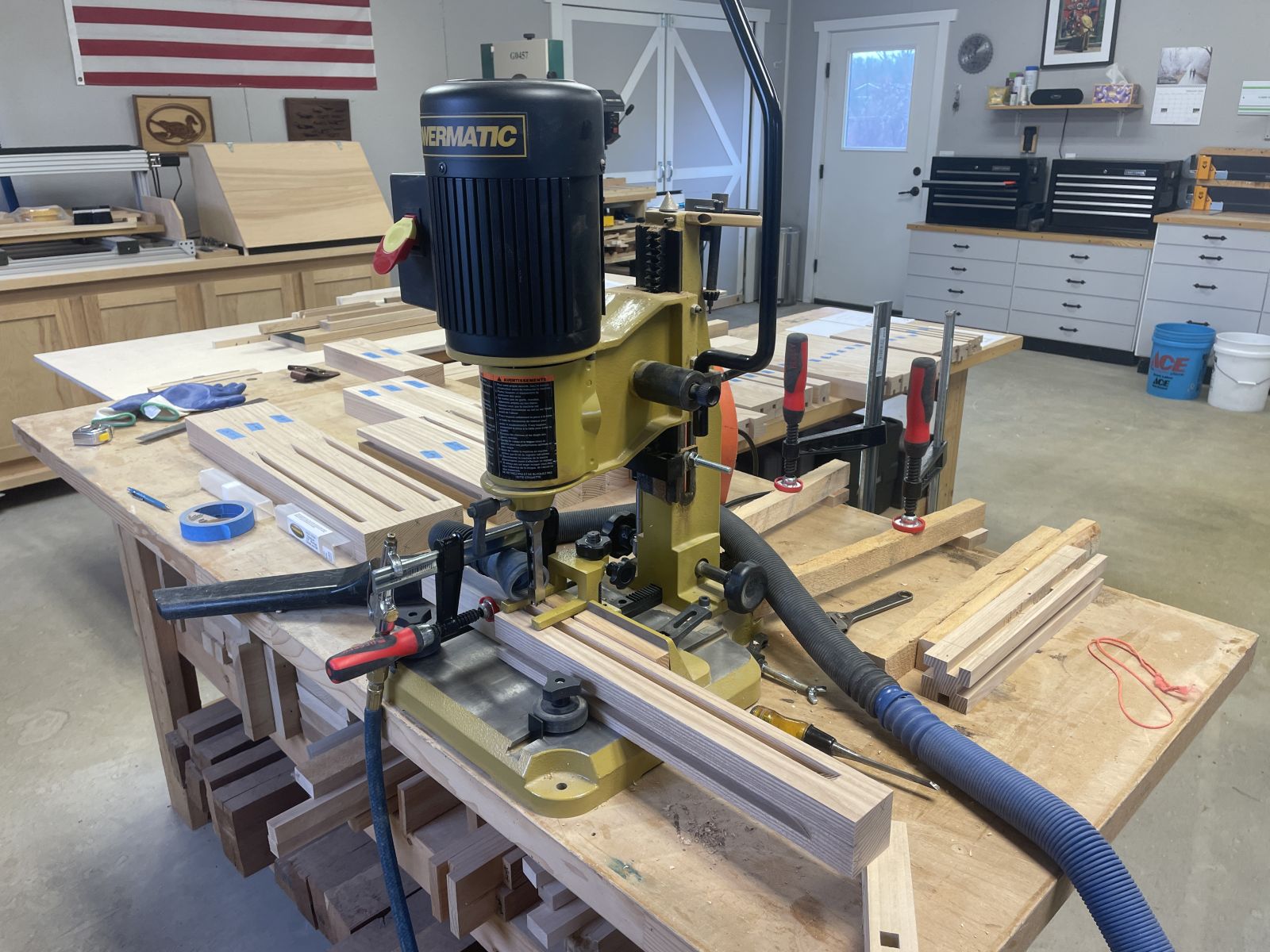

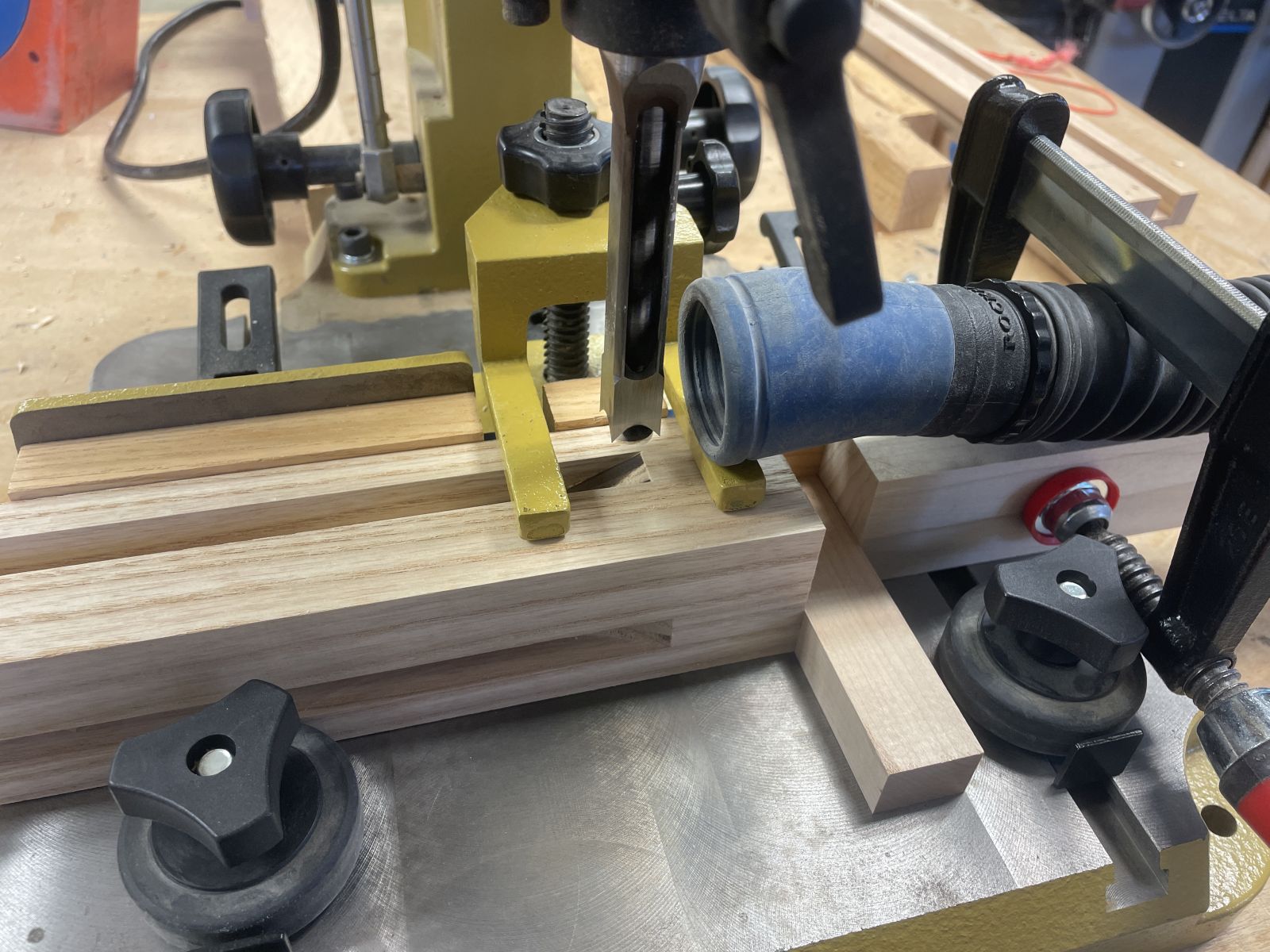

Cutting mortises with the dedicated mortiser
Cutting mortises with the dedicated mortiser

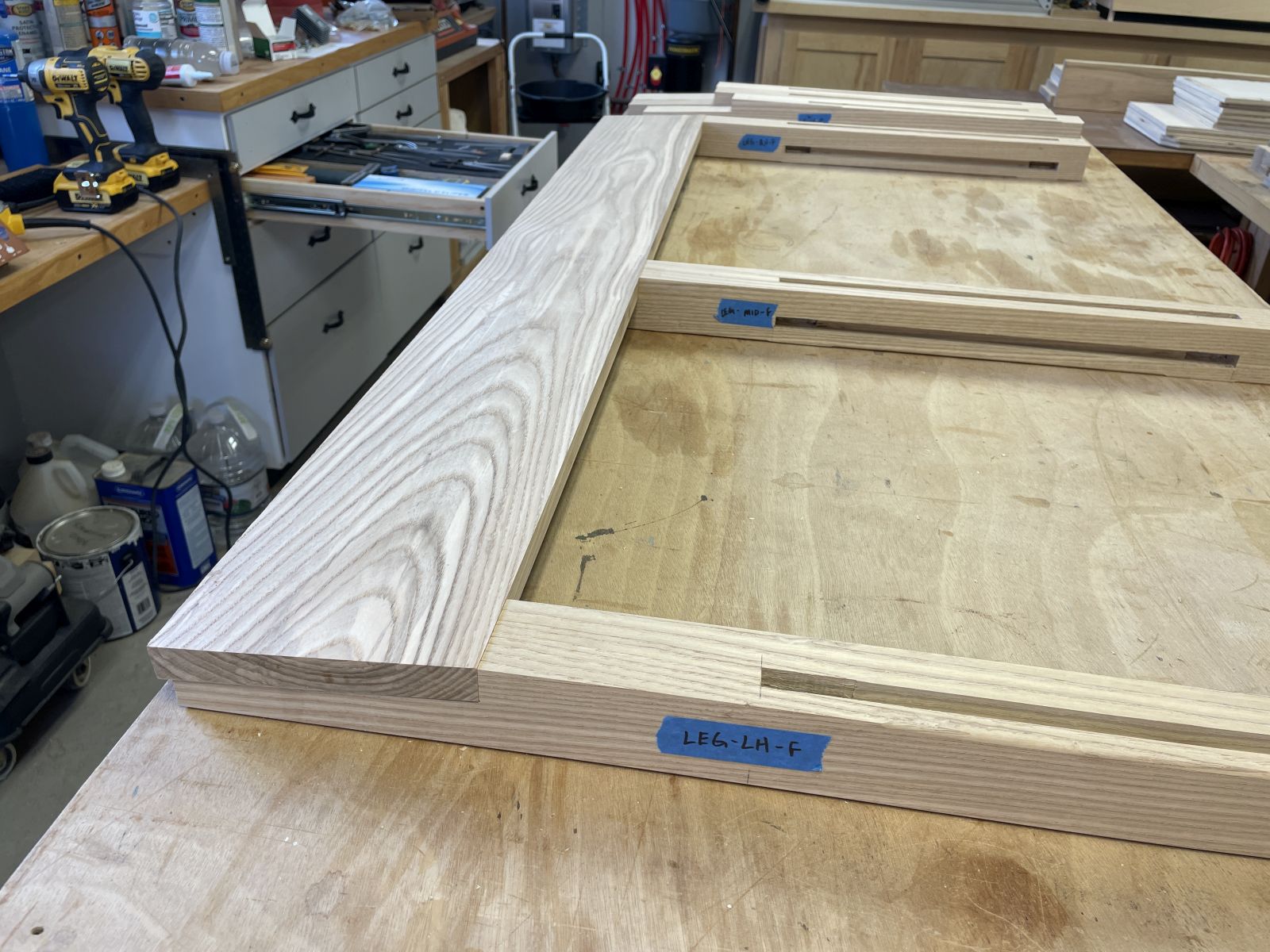

Mortises lined up with existing stopped dadoes
Mortises lined up with existing stopped dadoes

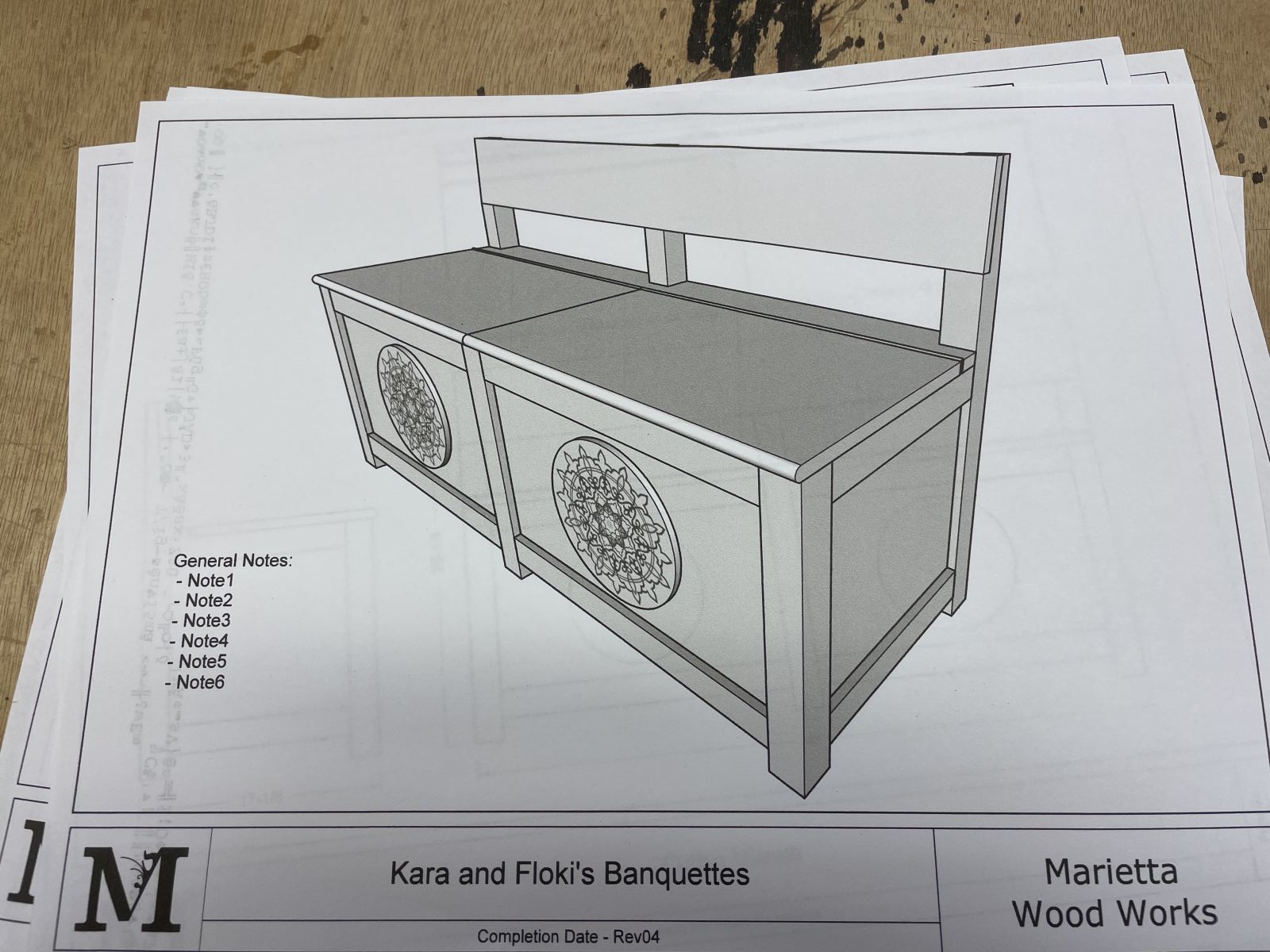

Shop drawings cover page
Shop drawings cover page

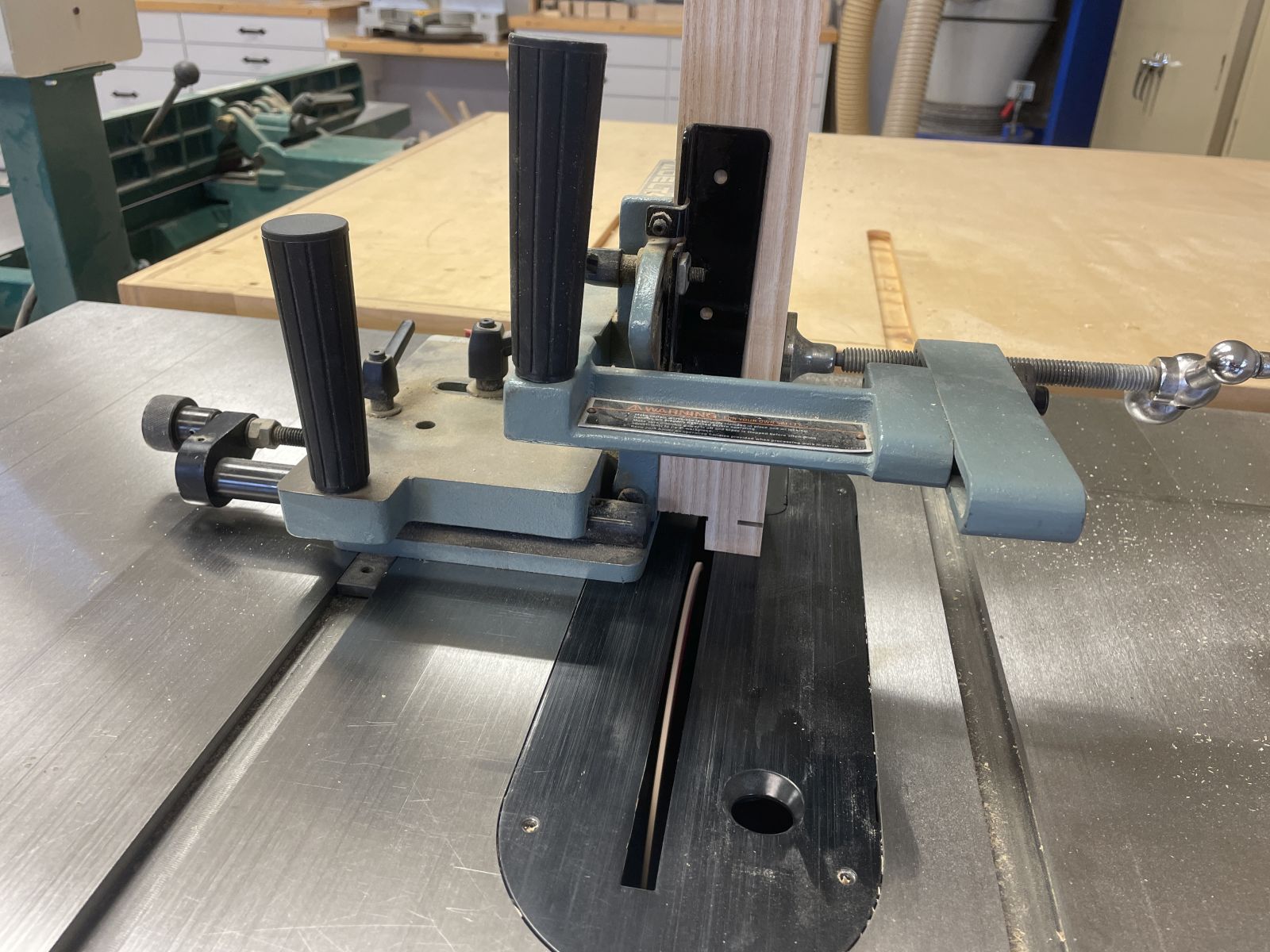

Cutting tenons on the table saw with a tenoning jig
Cutting tenons on the table saw with a tenoning jig

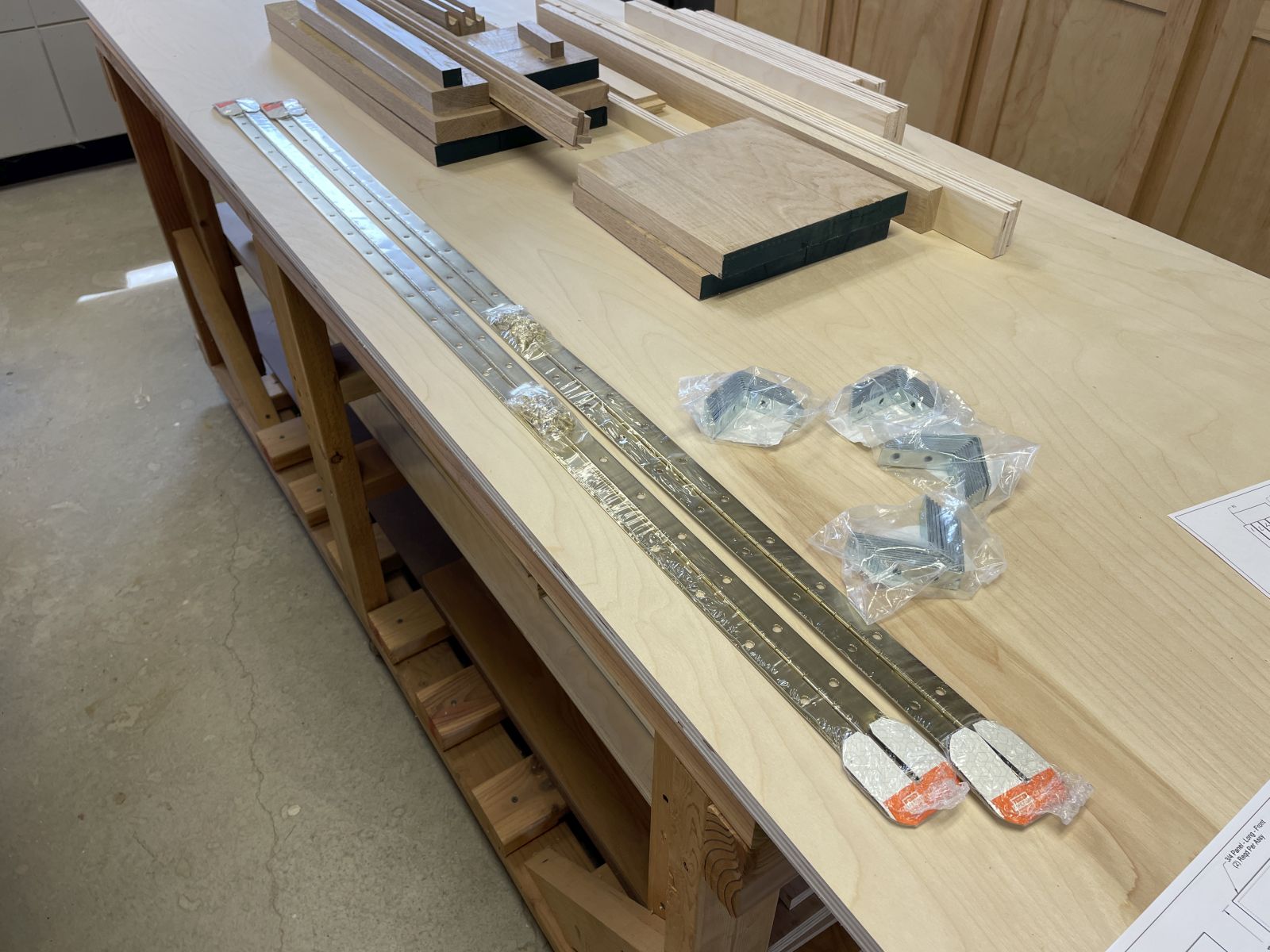

Continuous piano hinges for the storage bench seats/lids
Continuous piano hinges for the storage bench seats/lids

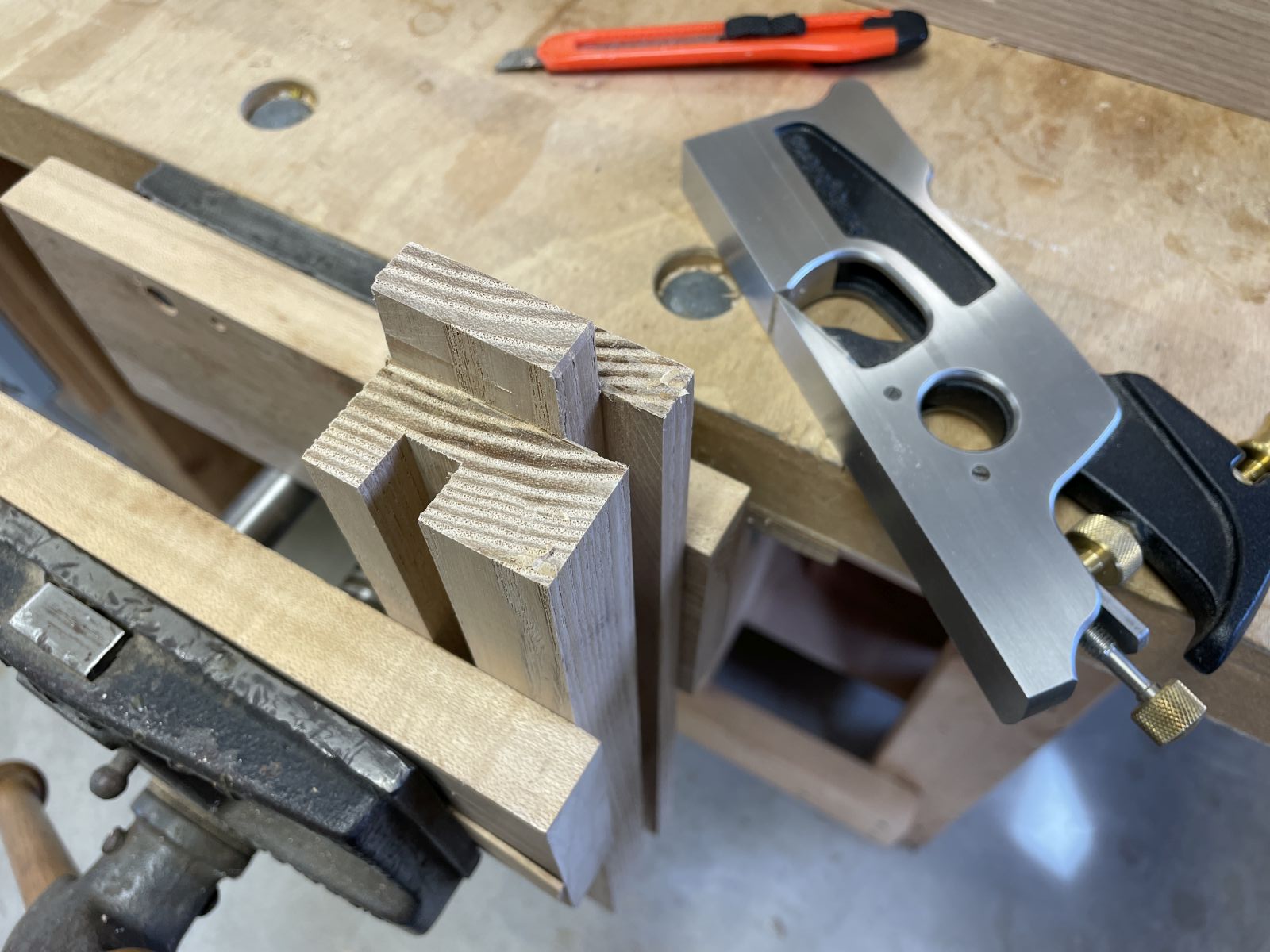

Tuning tenons with a shoulder plane
Tuning tenons with a shoulder plane

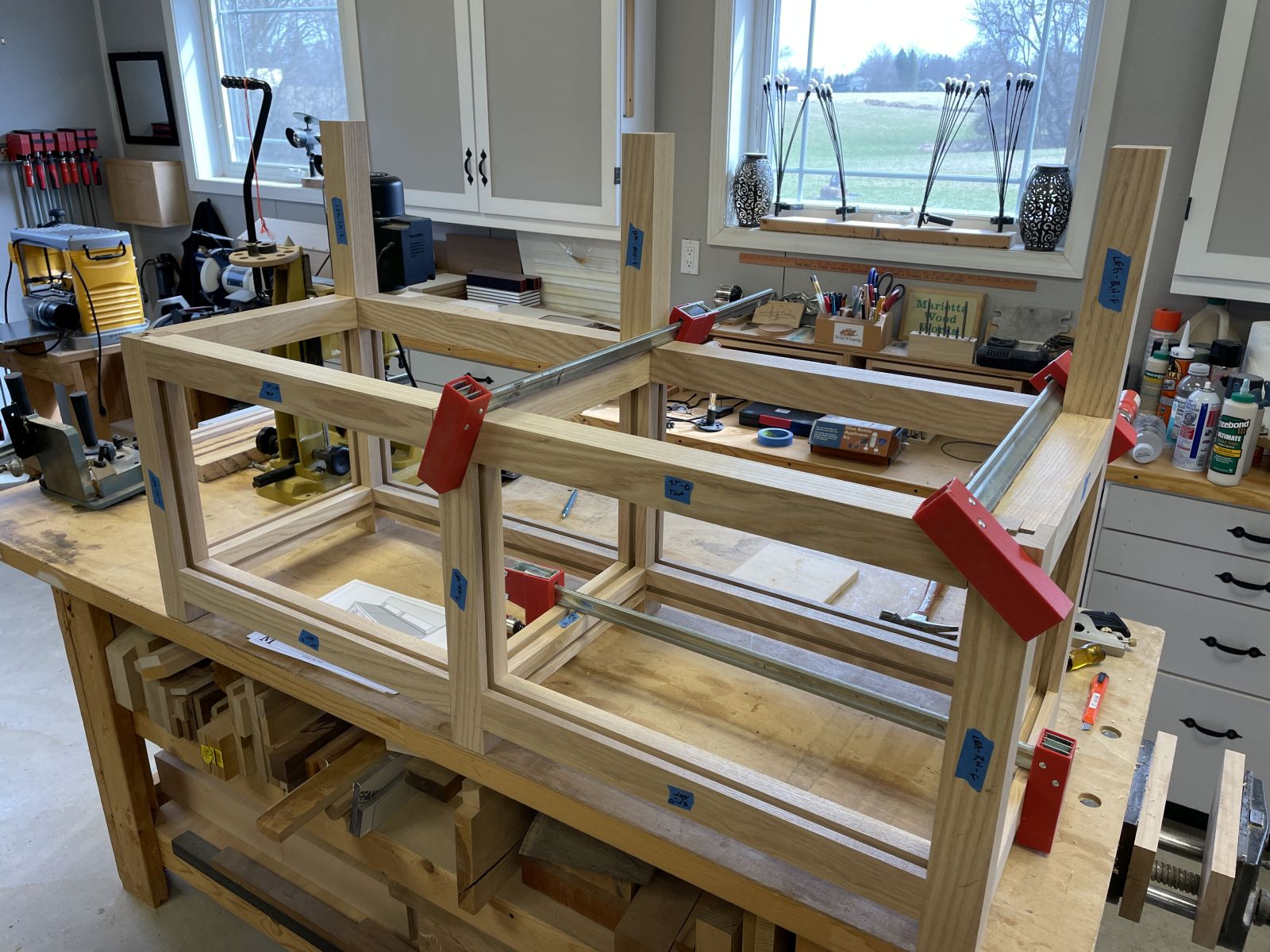

First dry fit of frame components
First dry fit of frame components
Subframe assembly
Subframe assembly
Subframe assembly with back panels of birch plywood installed
Subframe assembly with back panels of birch plywood installed

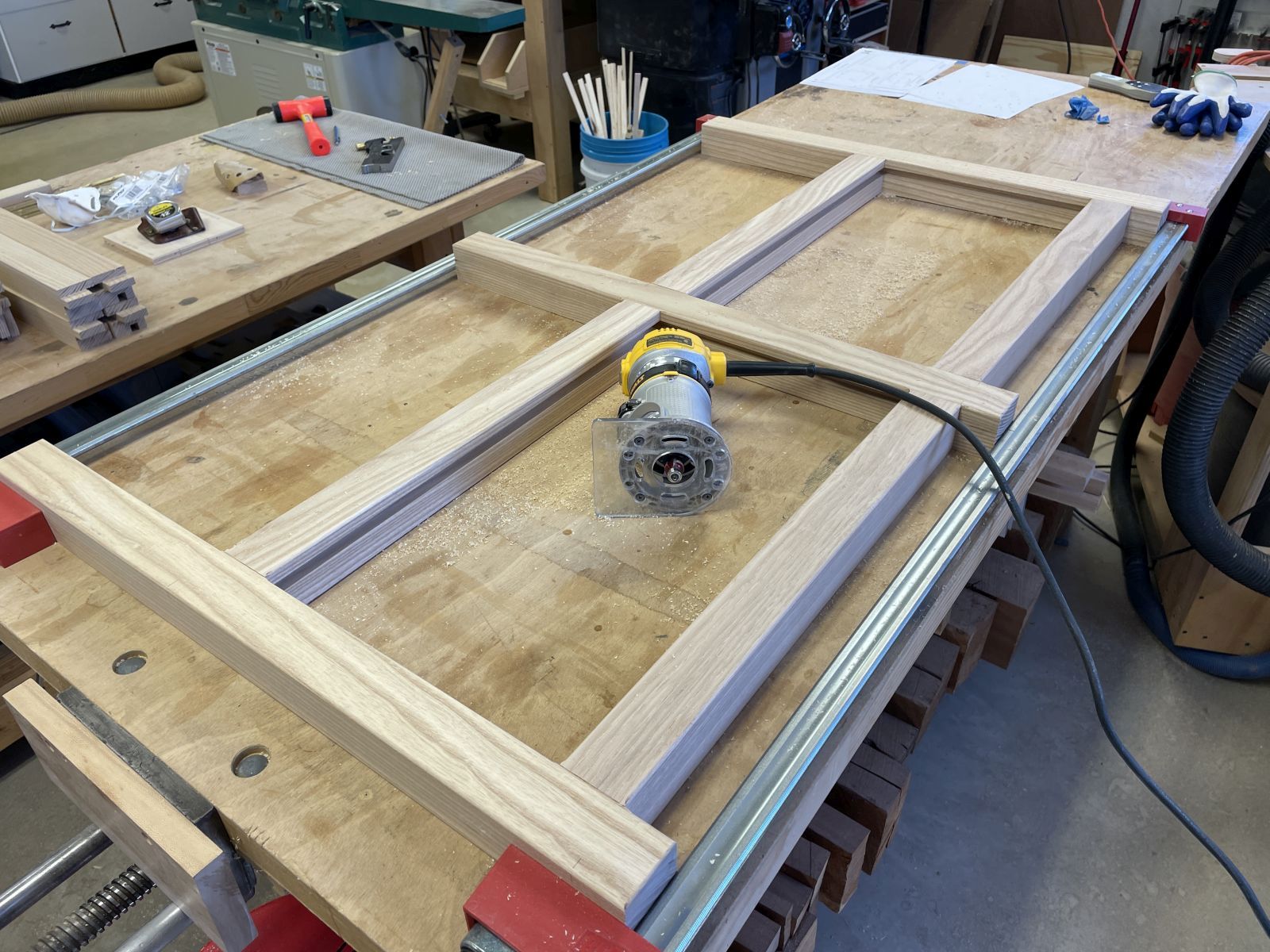

Routing small radii on all the frame members
Routing small radii on all the frame members

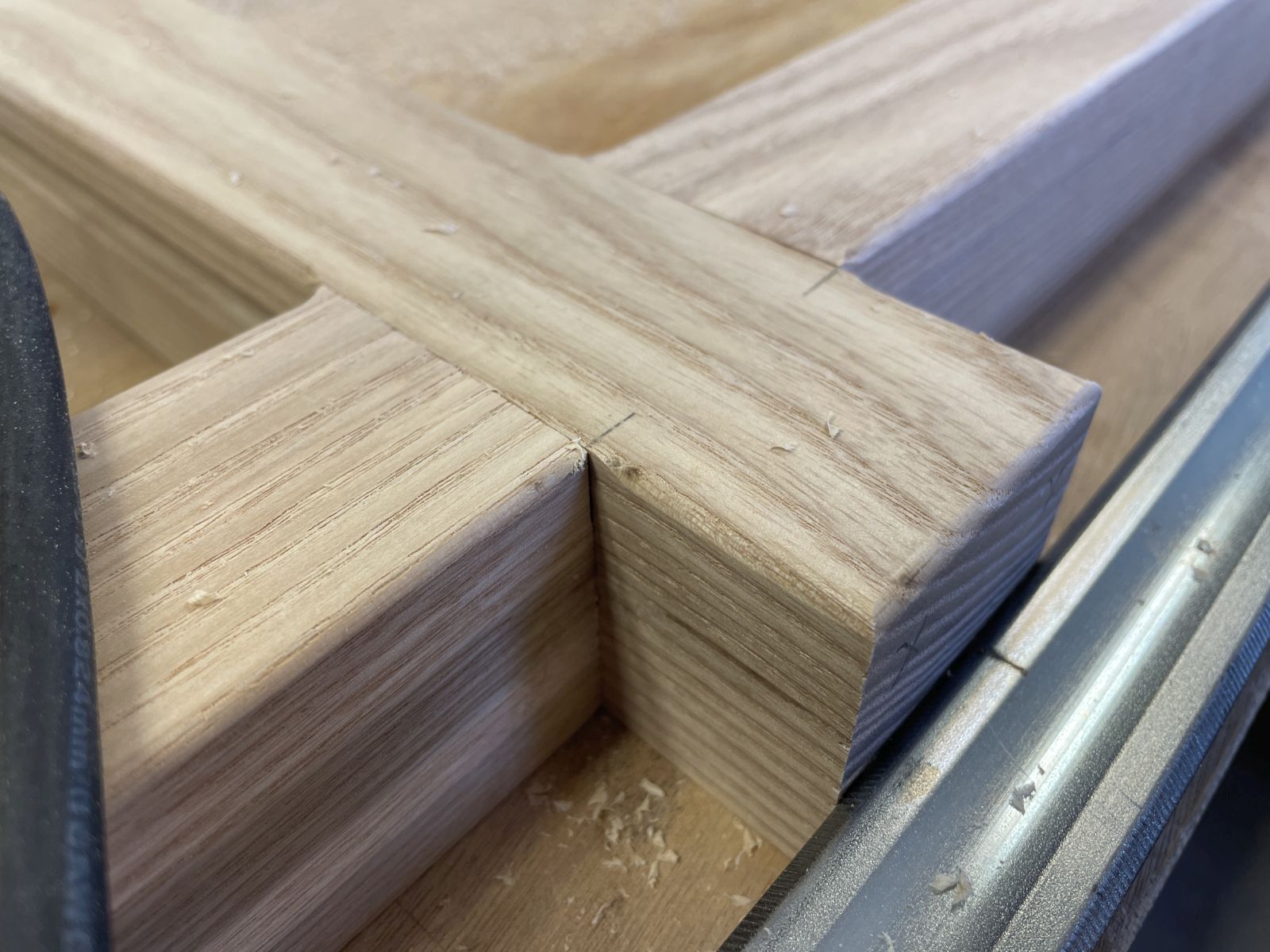

All sharp edges broken with small radii
All sharp edges broken with small radii

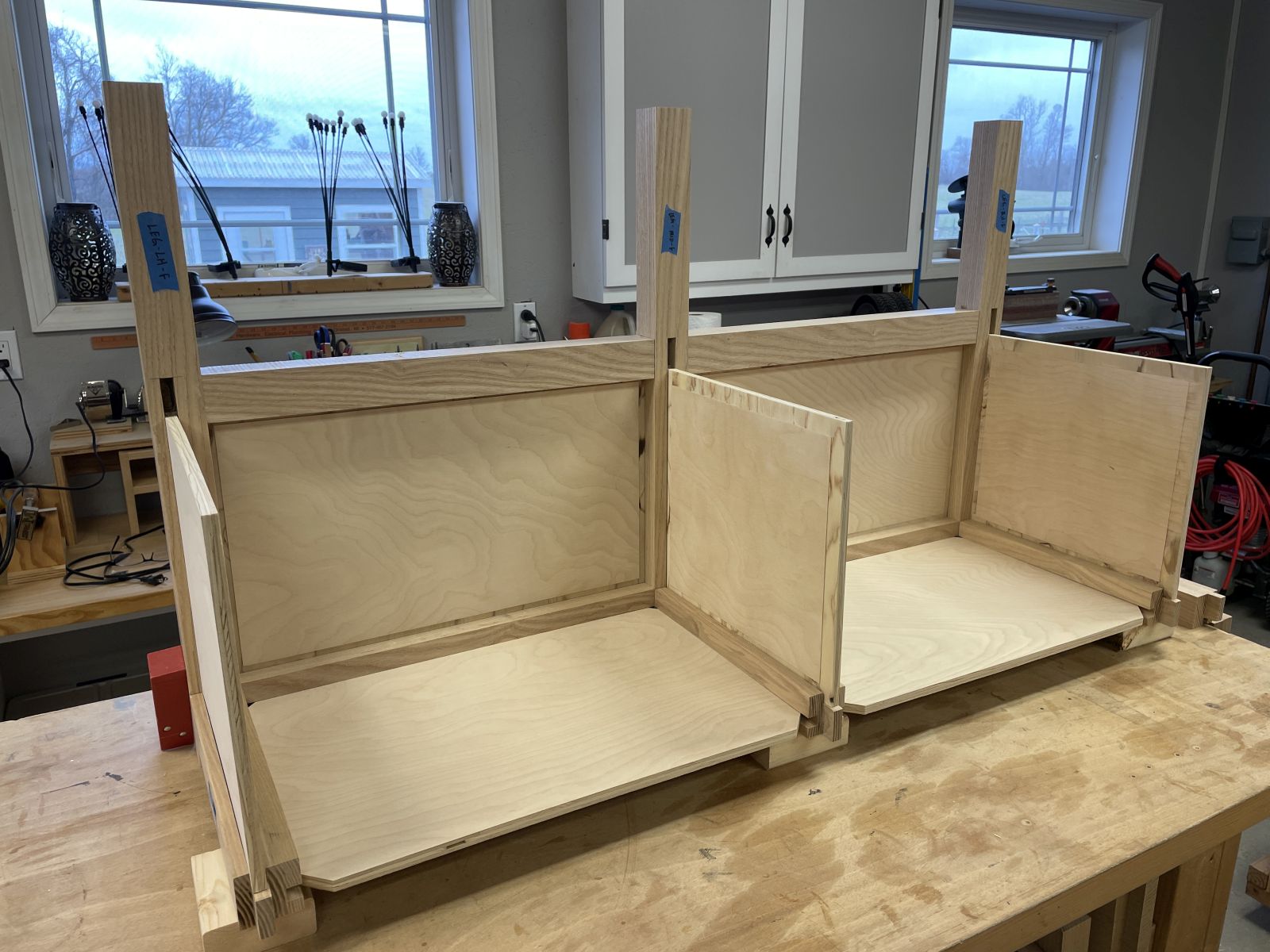

More dry fitting with bottom and side panels
More dry fitting with bottom and side panels

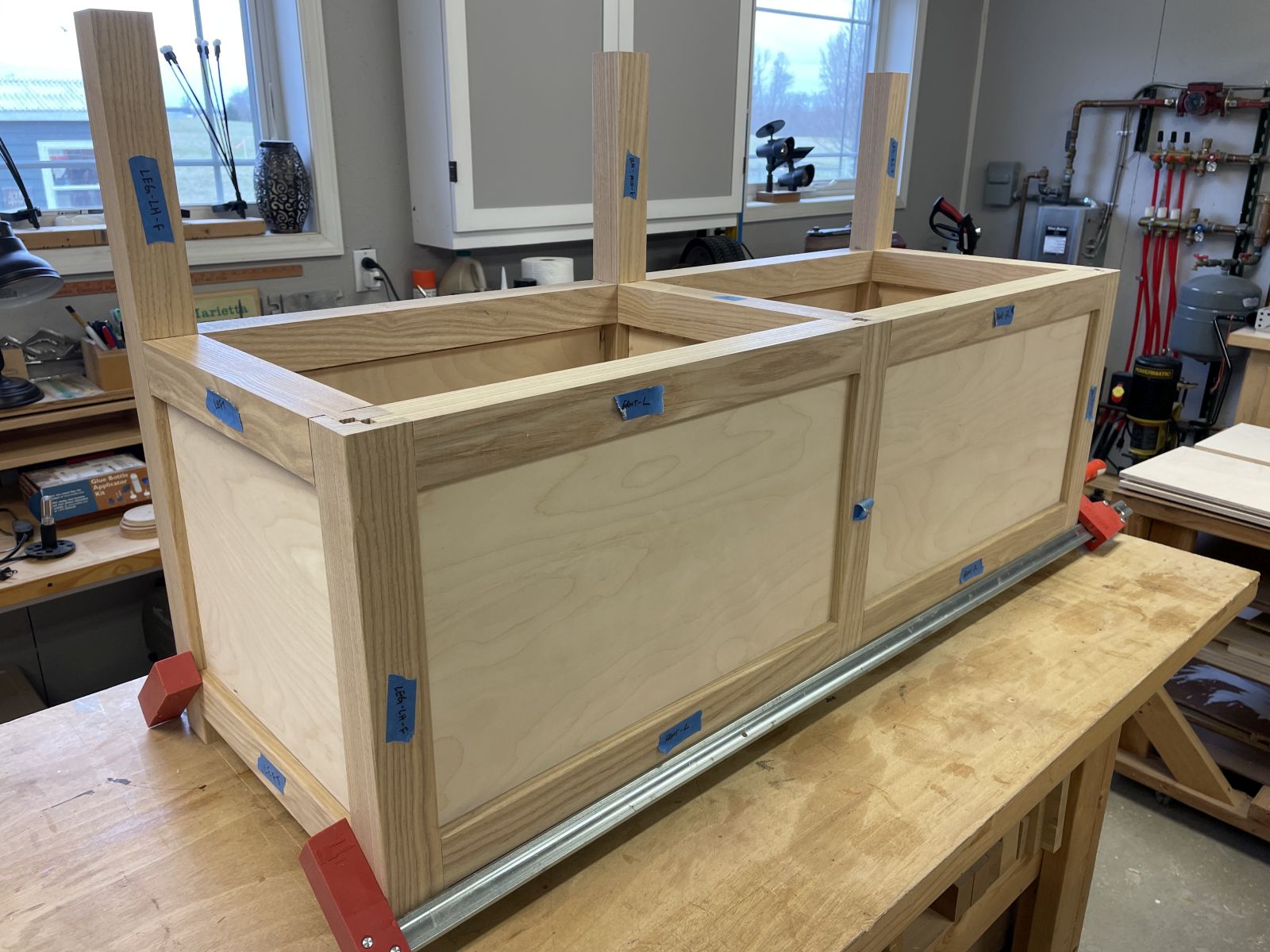

Complete dry fit with all panels in place
Complete dry fit with all panels in place

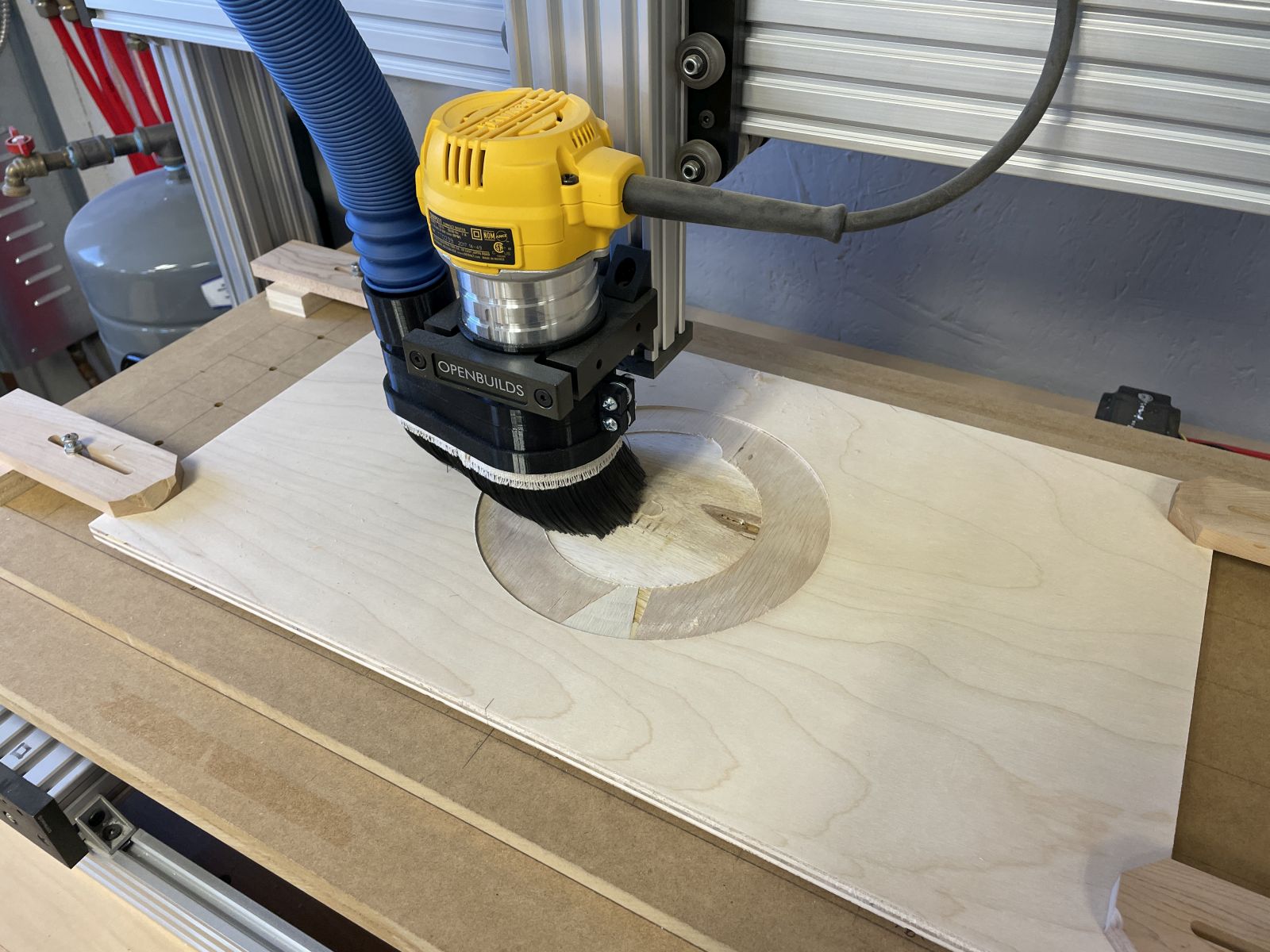

CNC routing the front panels to receive circular medallions
CNC routing the front panels to receive circular medallions

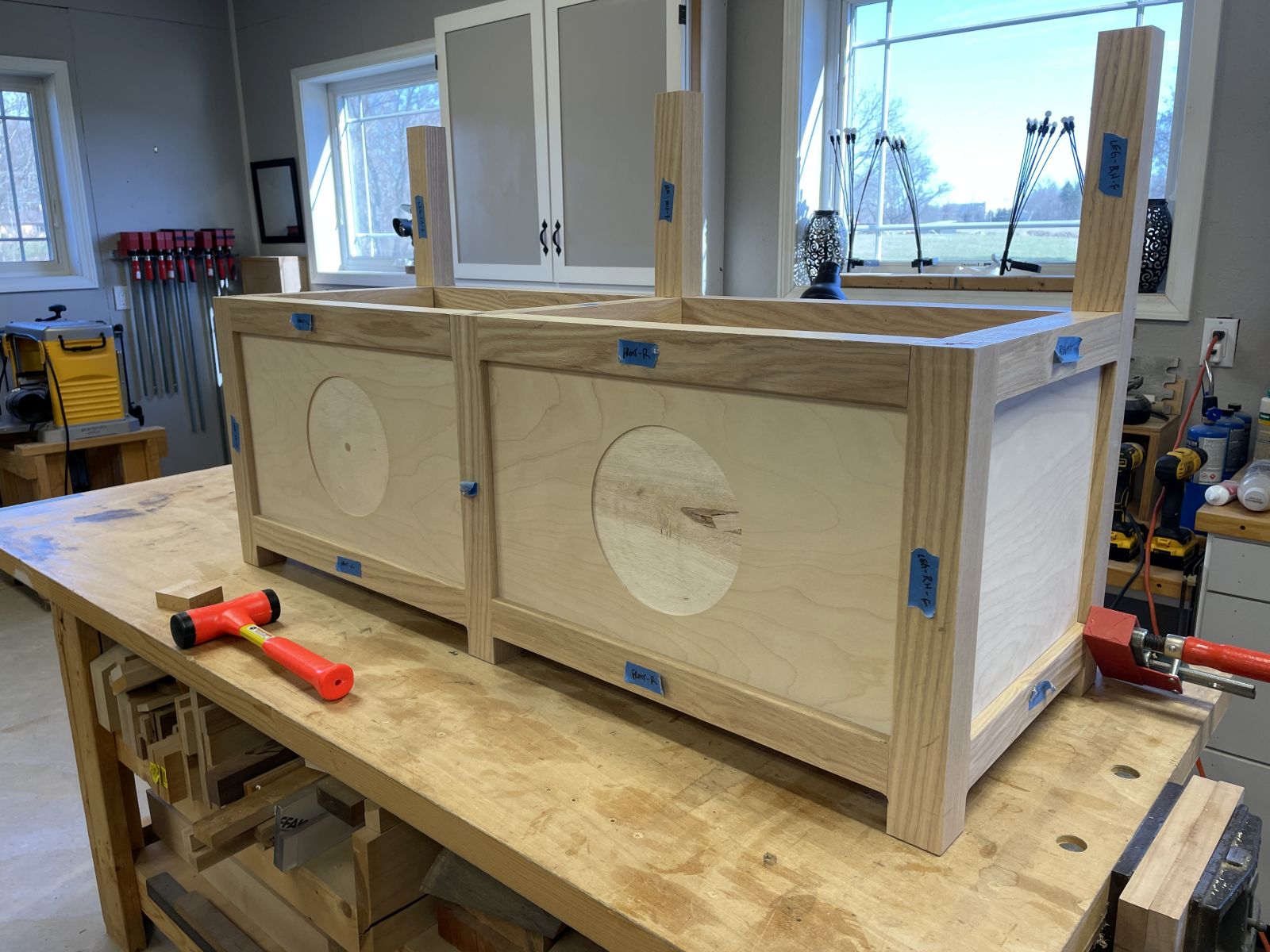

Dry fit with completed panels
Dry fit with completed panels

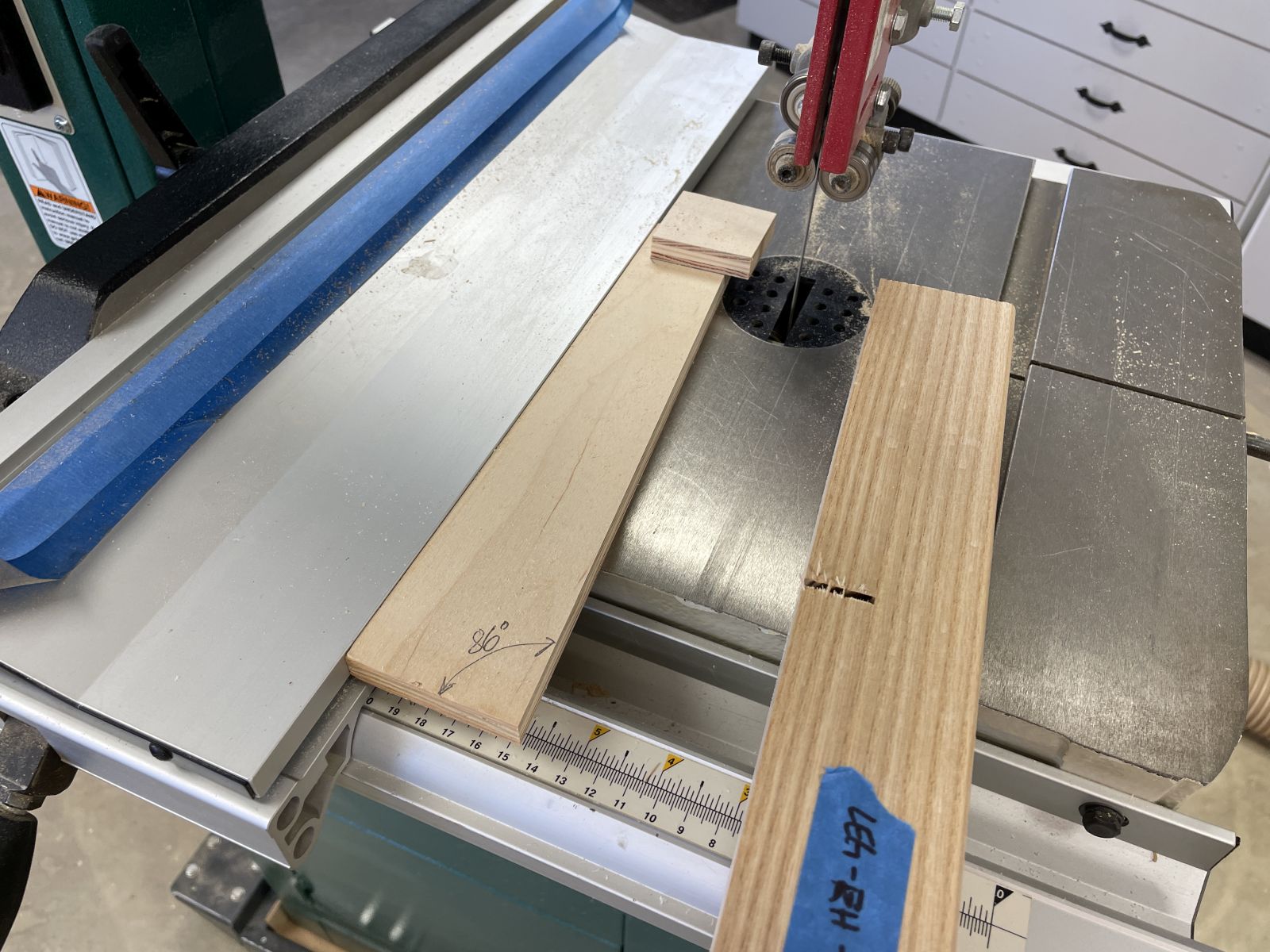

Shop-made jig to cut back rest angles on the bandsaw
Shop-made jig to cut back rest angles on the bandsaw

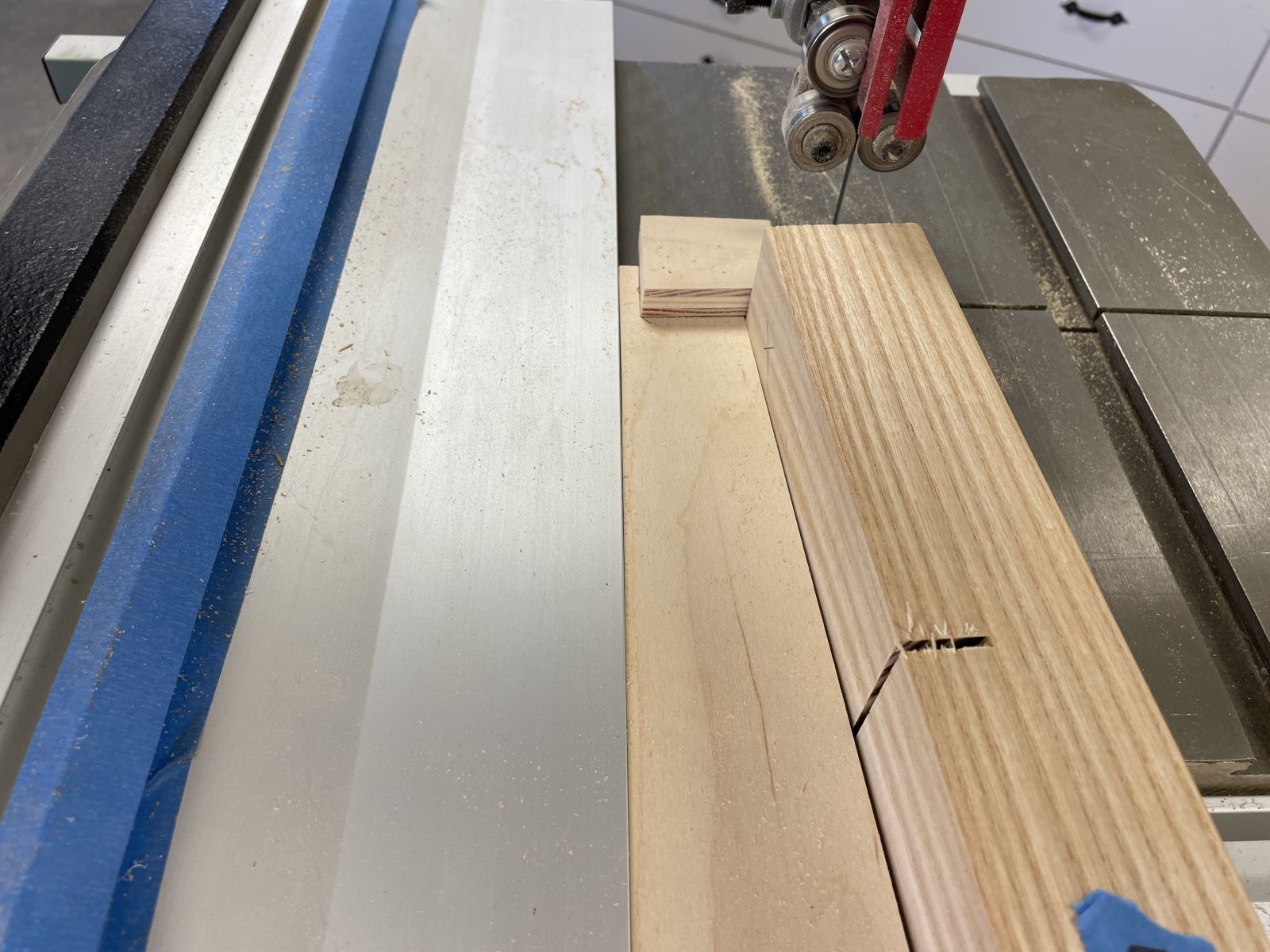

Cutting back rest angles on the bandsaw
Cutting back rest angles on the bandsaw

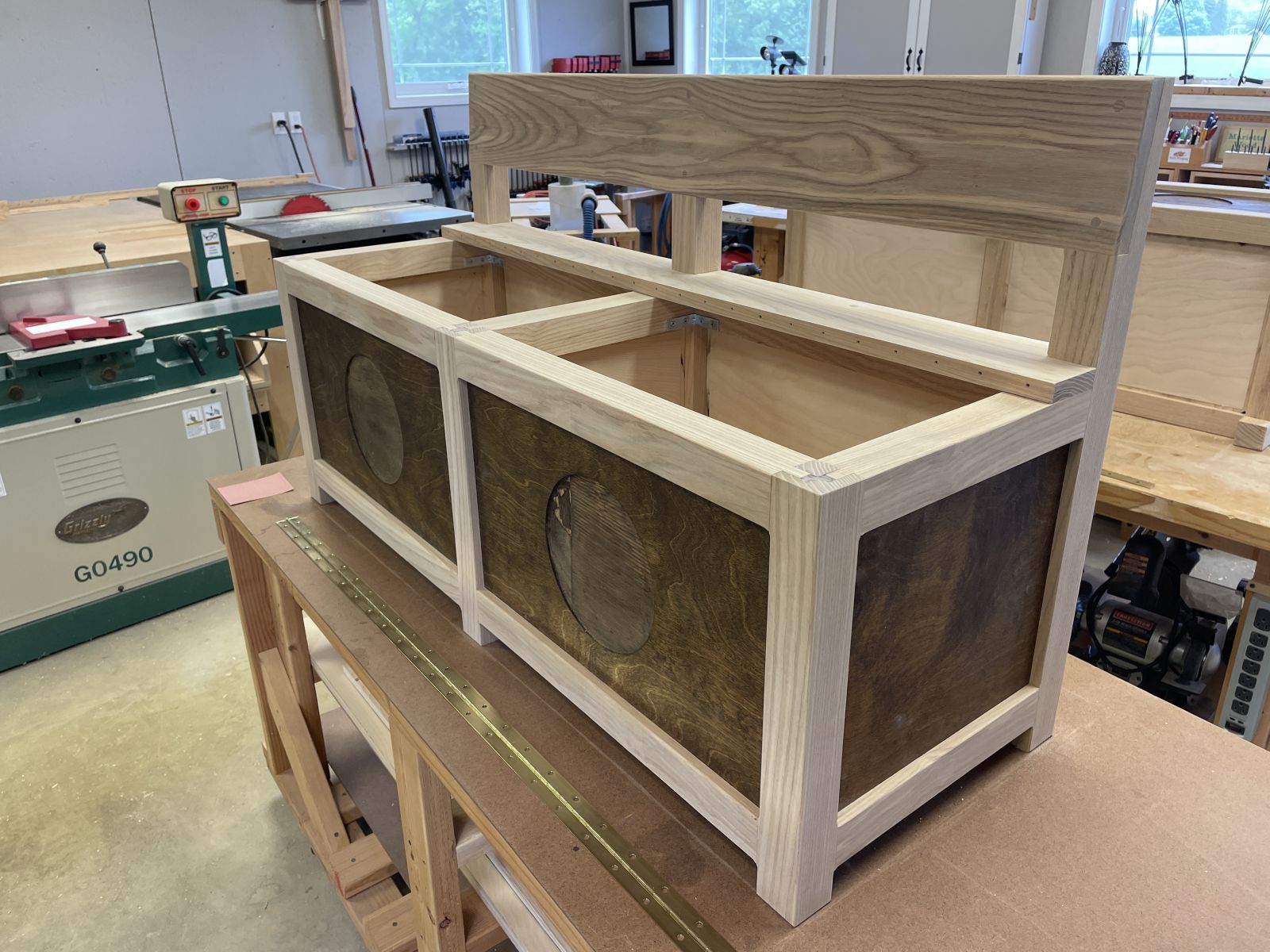

Back rest test fitting
Back rest test fitting

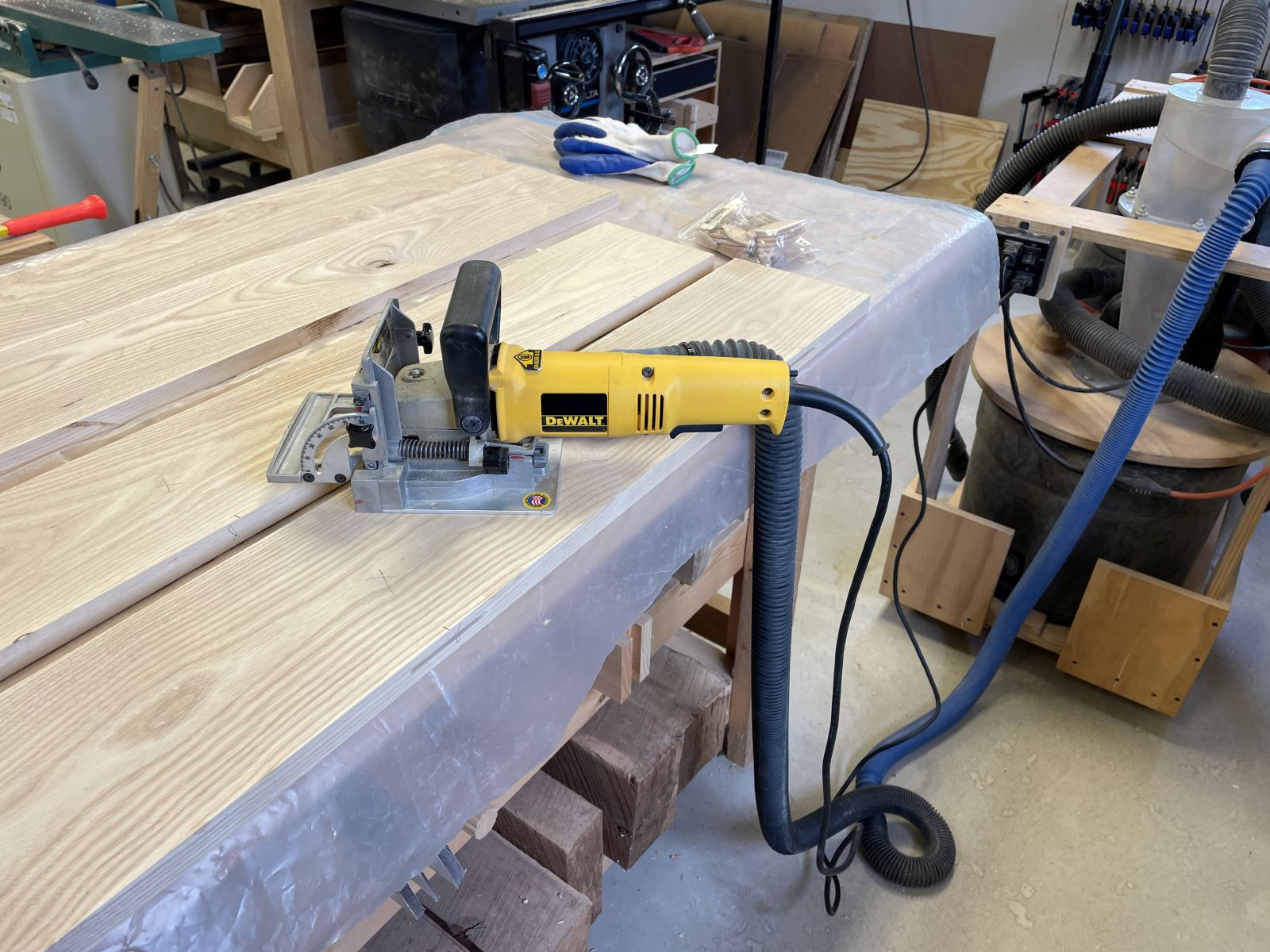

Cutting biscuit joints for bench seat glue-ups
Cutting biscuit joints for bench seat glue-ups

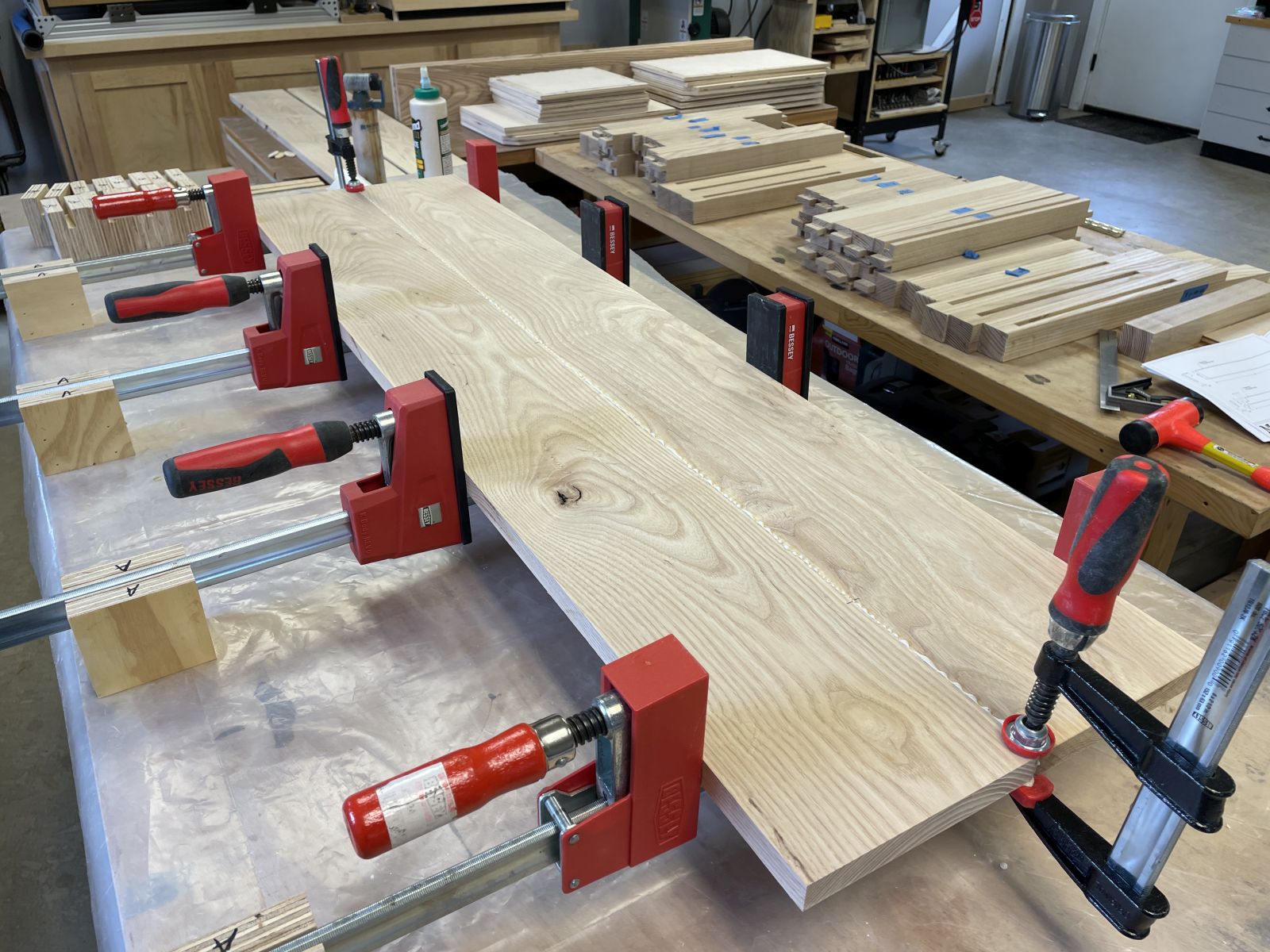

Bench lid/seat glue-up
Bench lid/seat glue-up

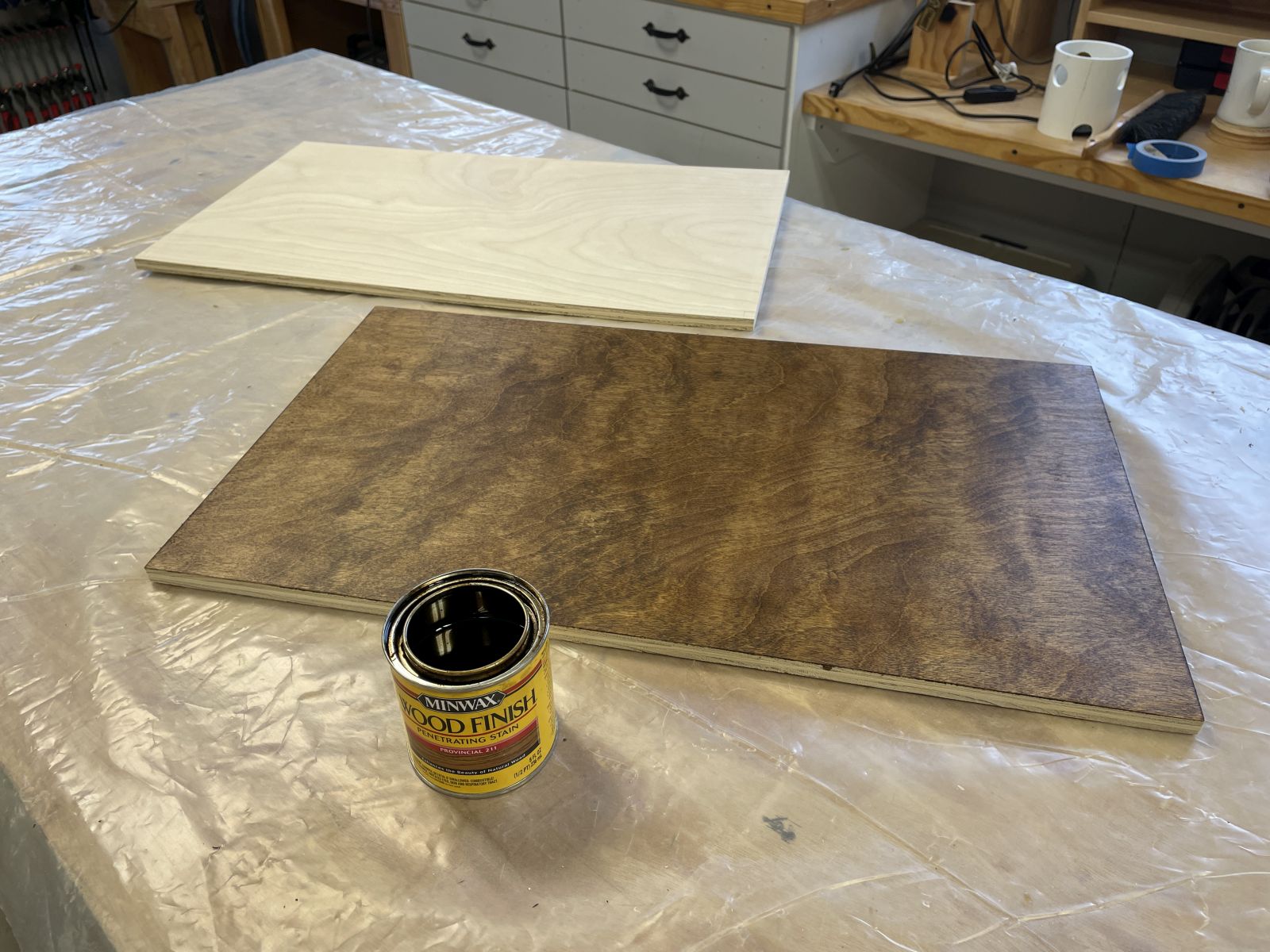

Pre-staining panels that will be captured in dadoes
Pre-staining panels that will be captured in dadoes

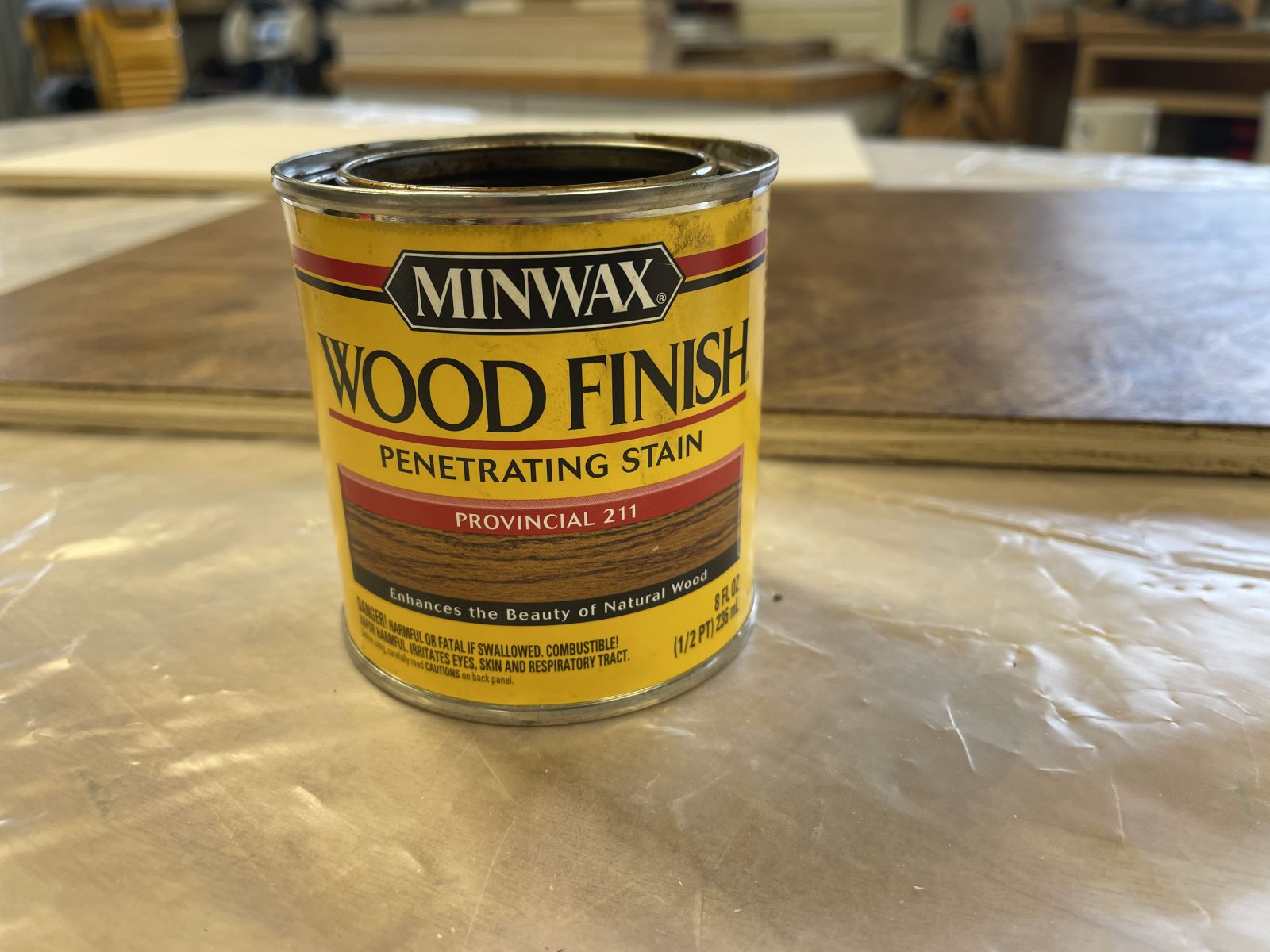

MinWax Provincial 211 stain has been a favorite of ours for many years
MinWax Provincial 211 stain has been a favorite of ours for many years

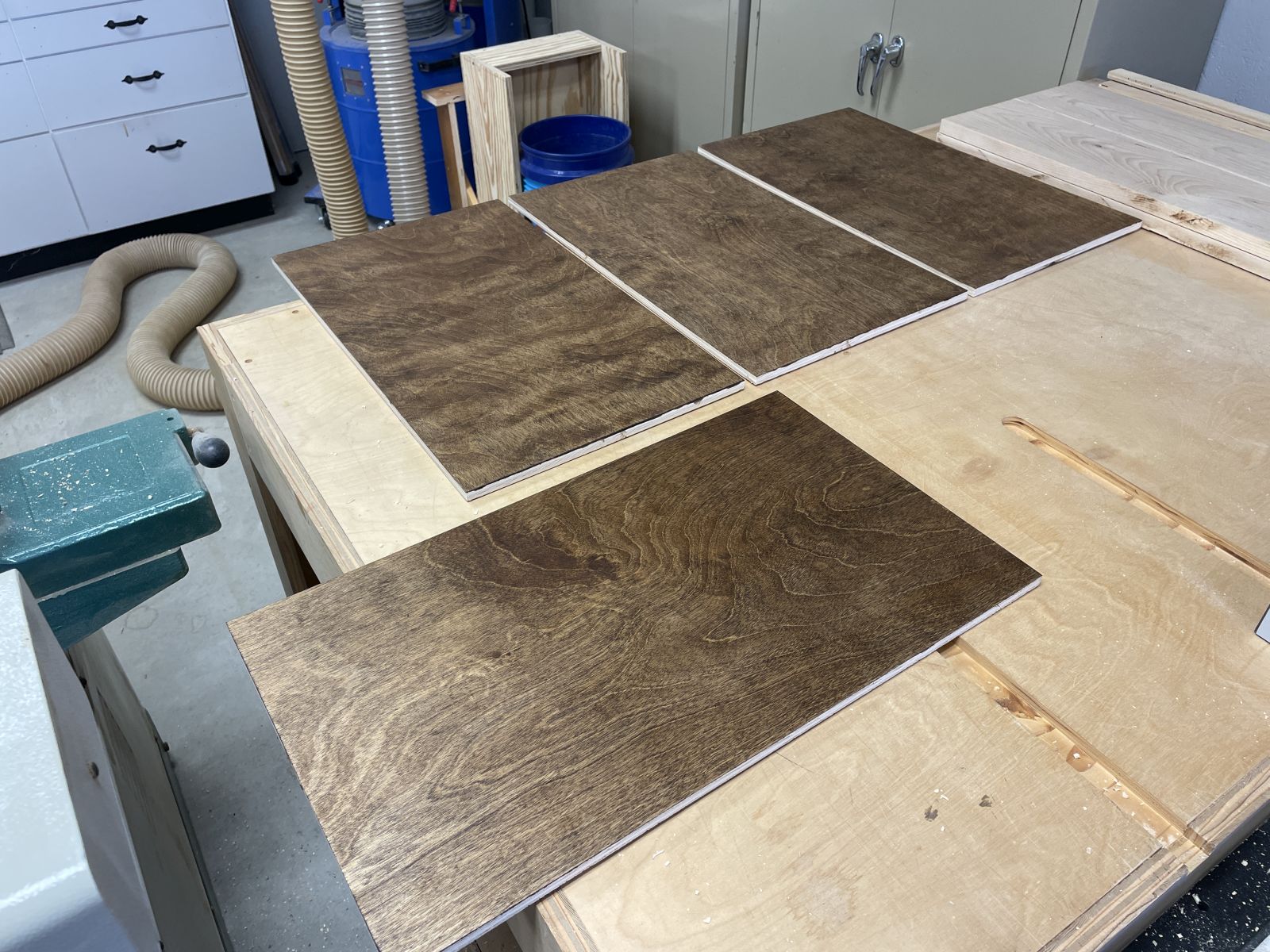

Pre-stained back panels
Pre-stained back panels

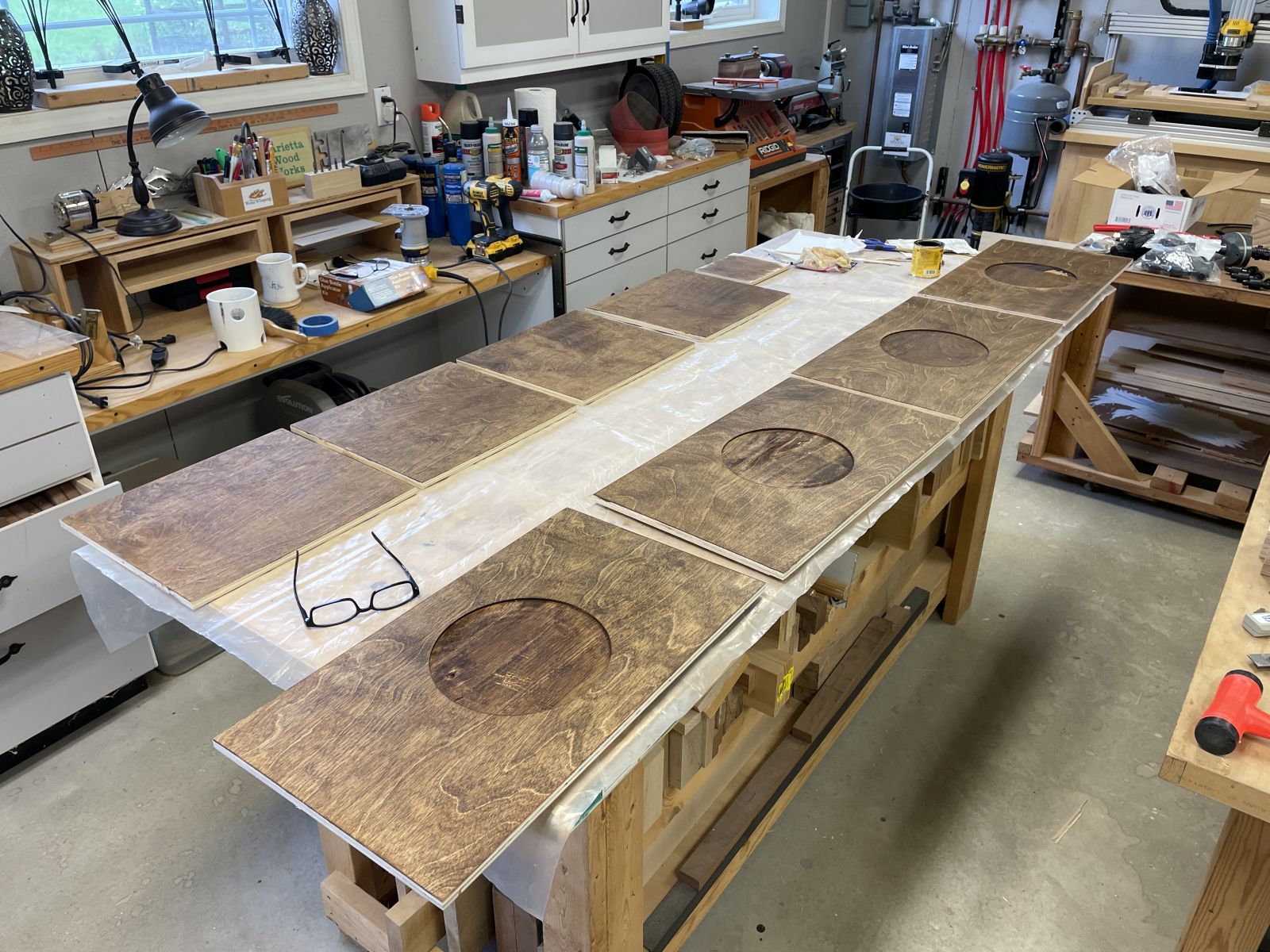

Pre-stained front and end panels
Pre-stained front and end panels

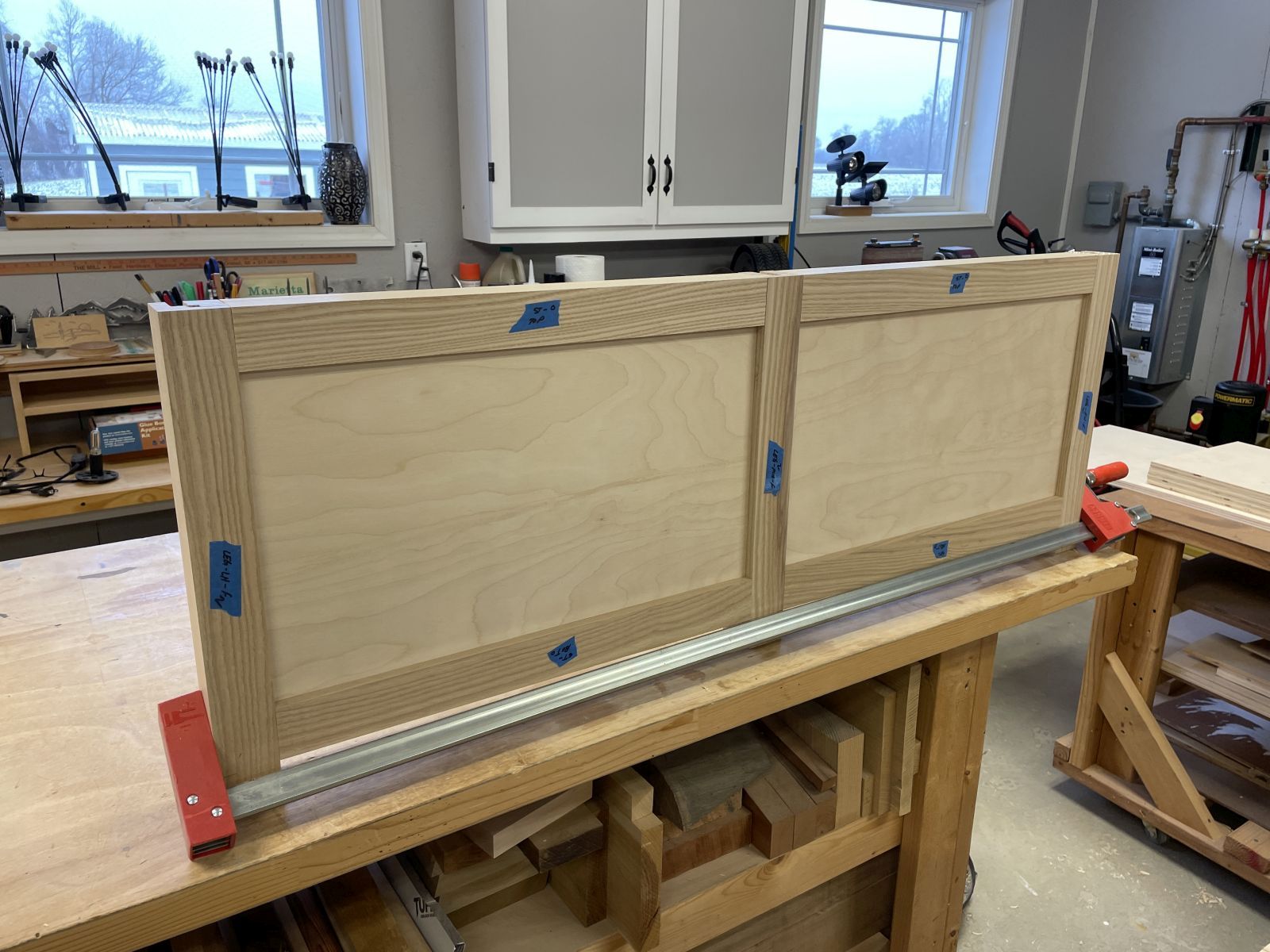

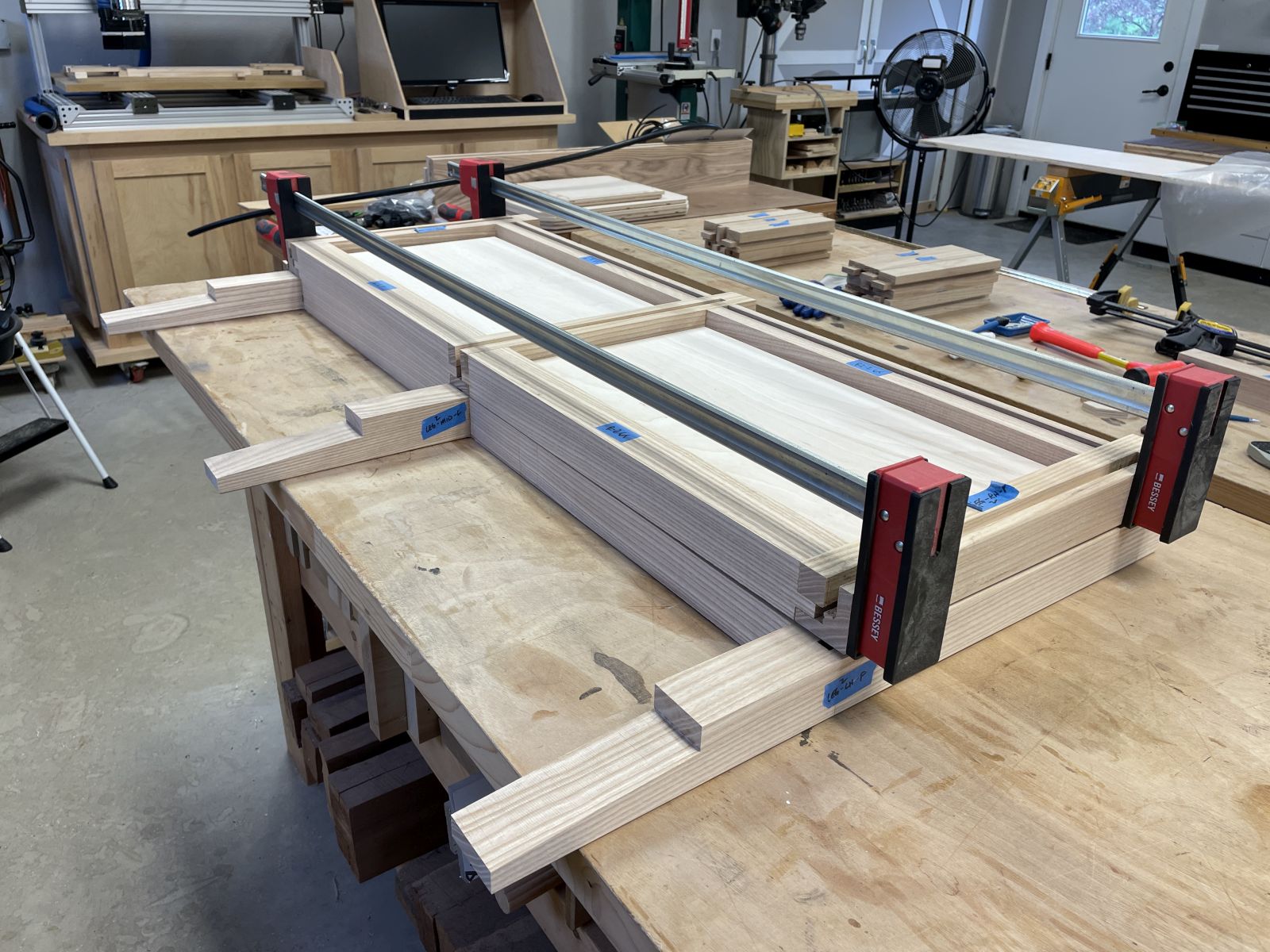

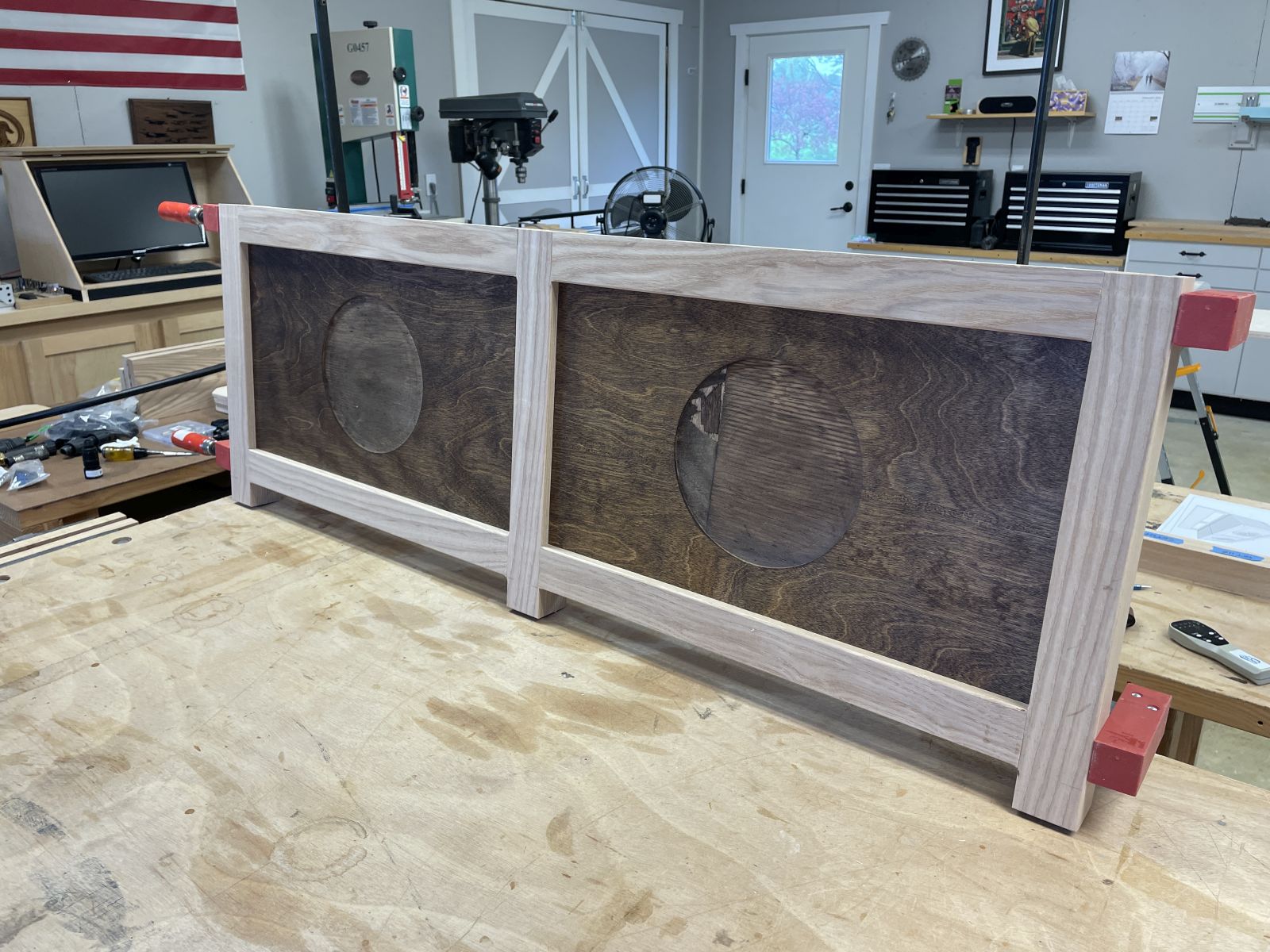

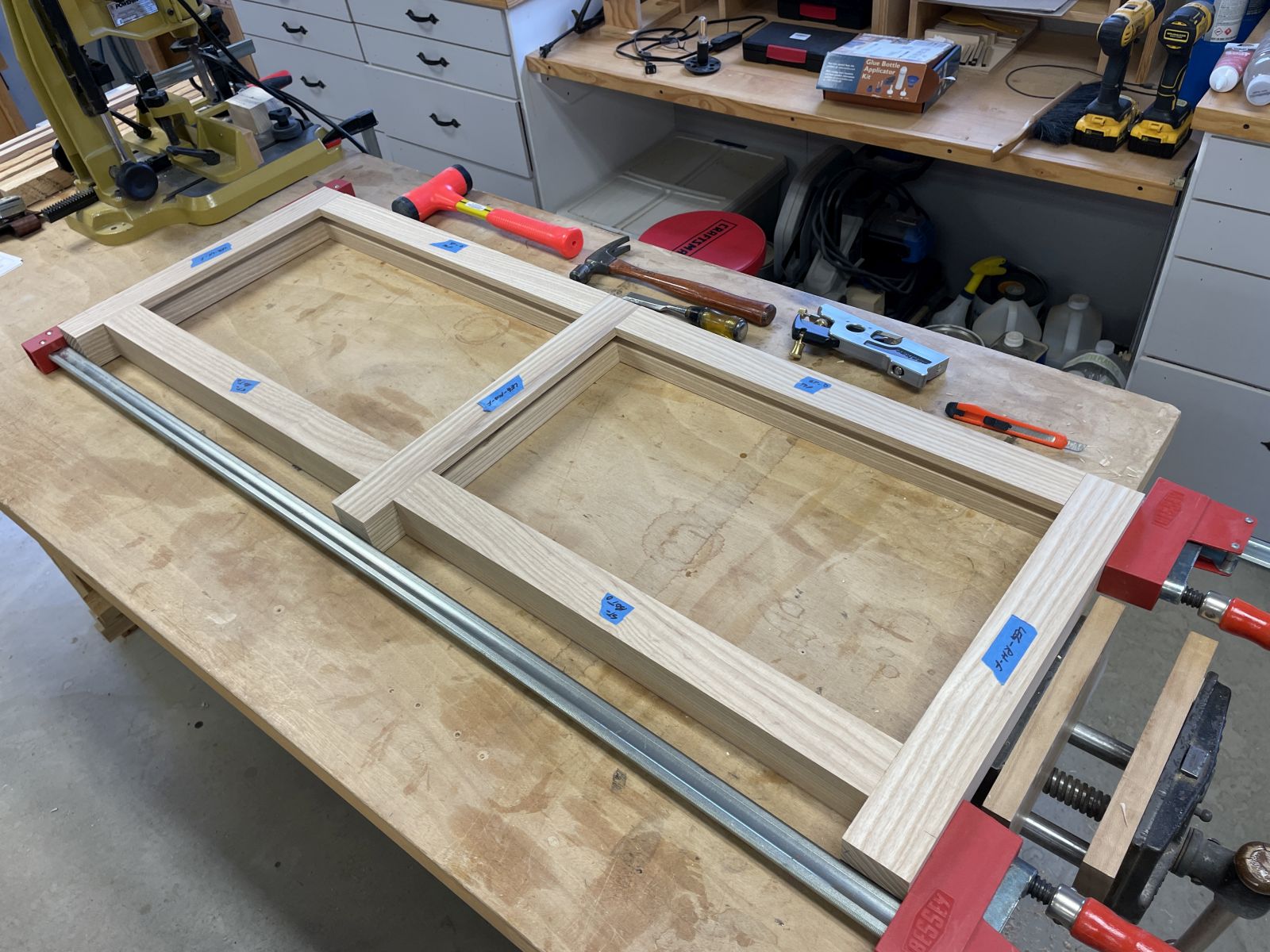

Front frame assembly with pre-stained panels
Front frame assembly with pre-stained panels
Frame sub-assemblies
Frame sub-assemblies

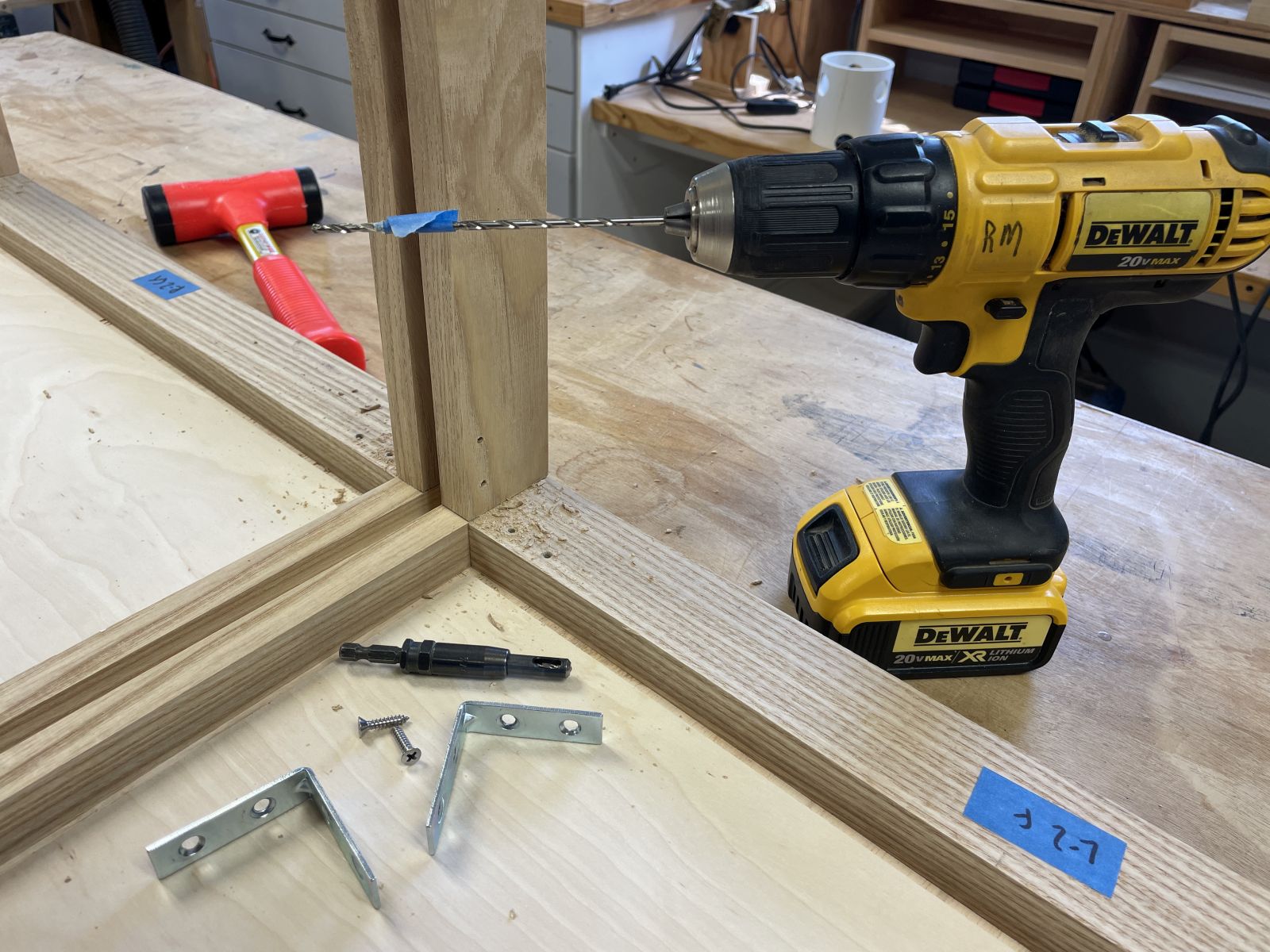

Pre-drilling for corner brackets
Pre-drilling for corner brackets

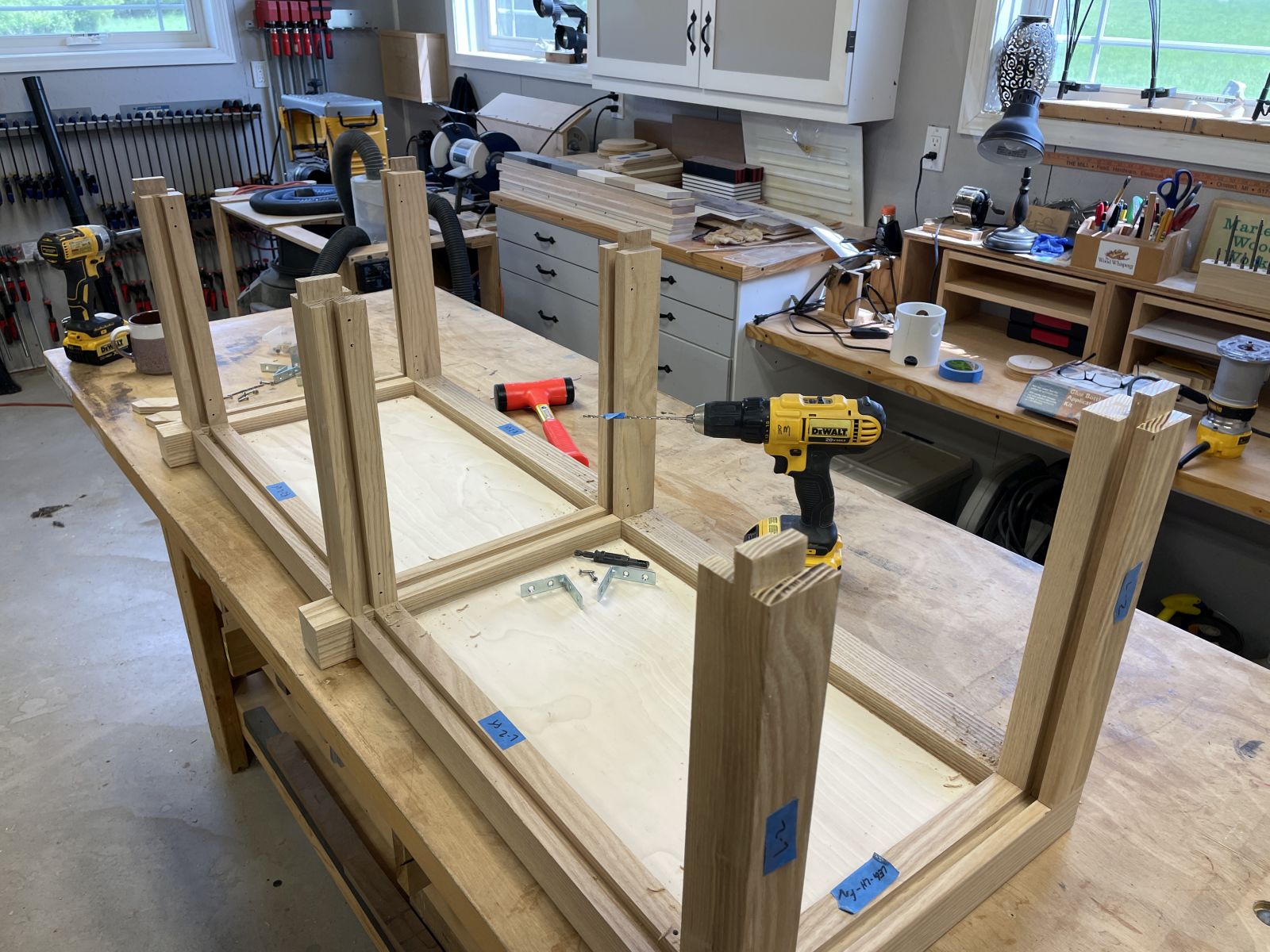

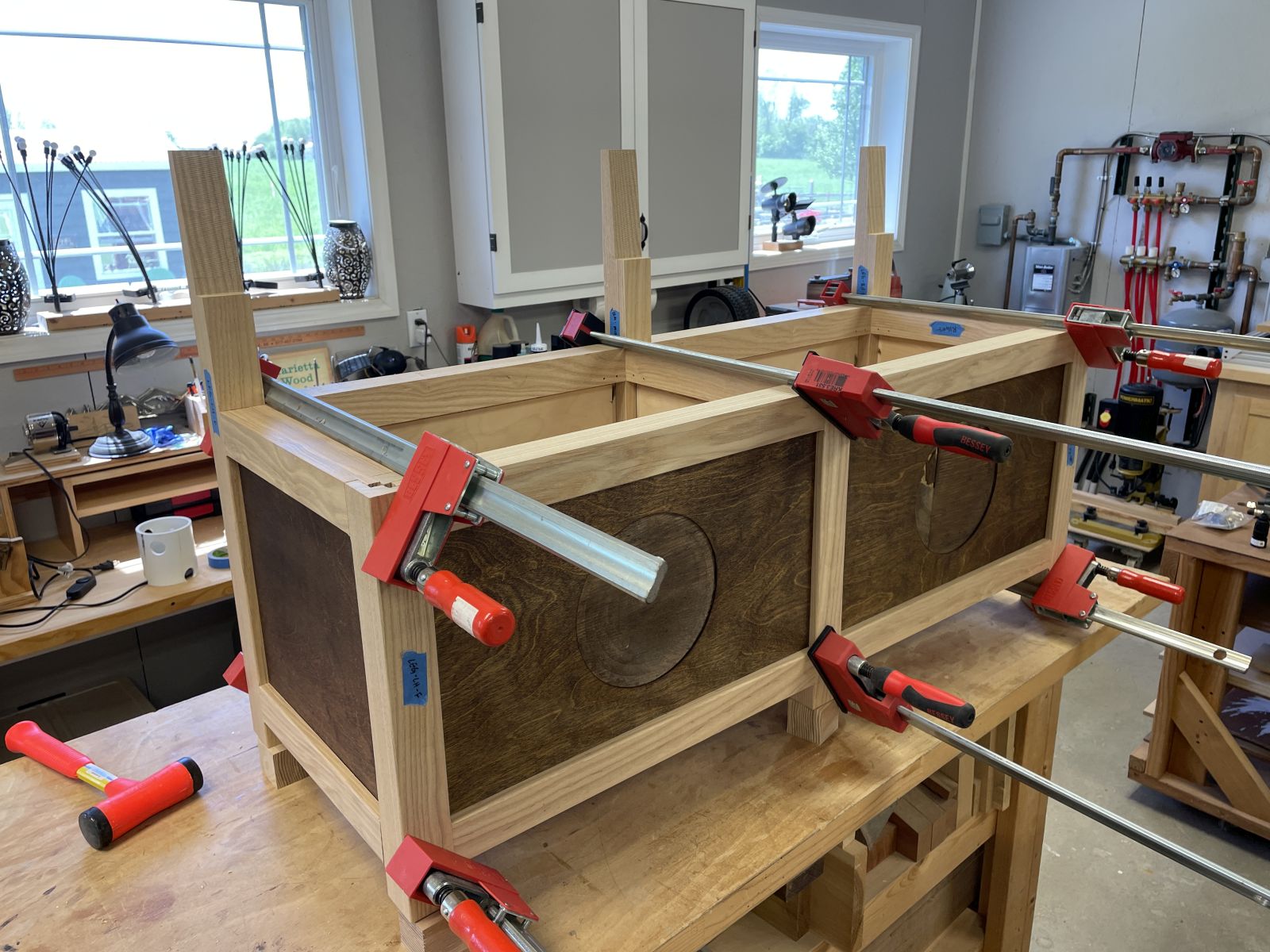

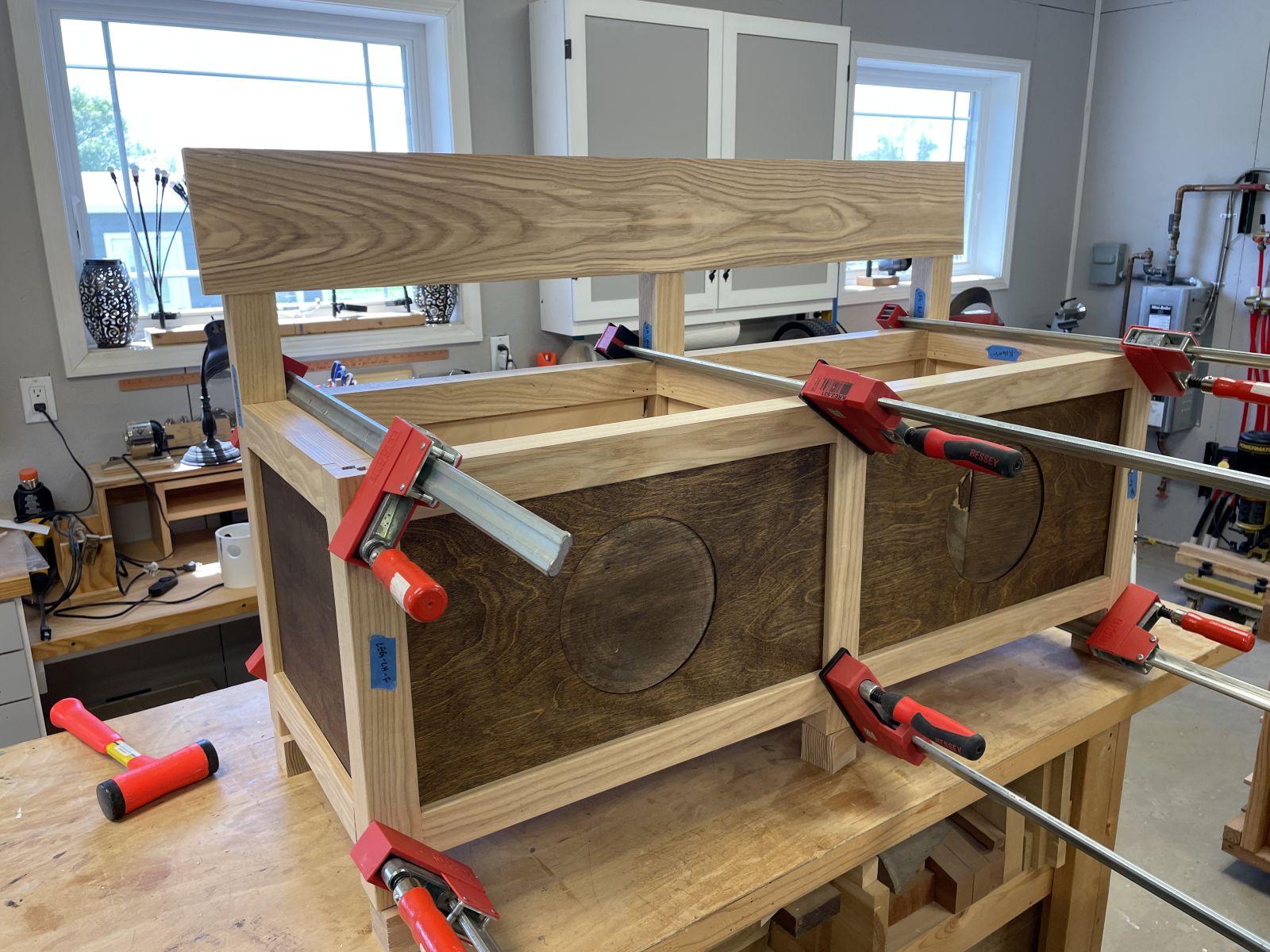

Assembling front and back frames with cross members
Assembling front and back frames with cross members

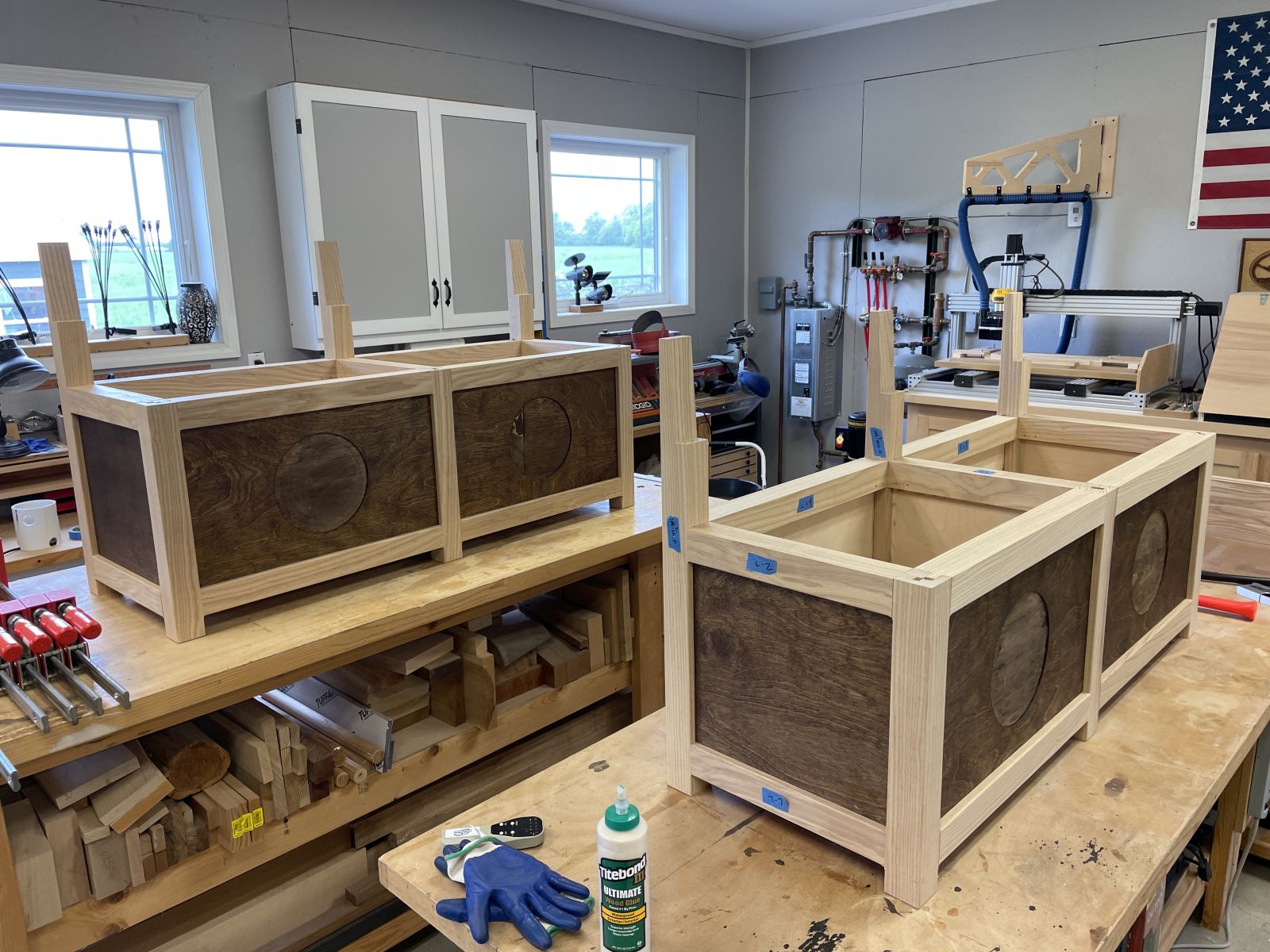

Fully assembled frames
Fully assembled frames
Fully assembled frames with backrest temporarily in place
Fully assembled frames with backrest temporarily in place

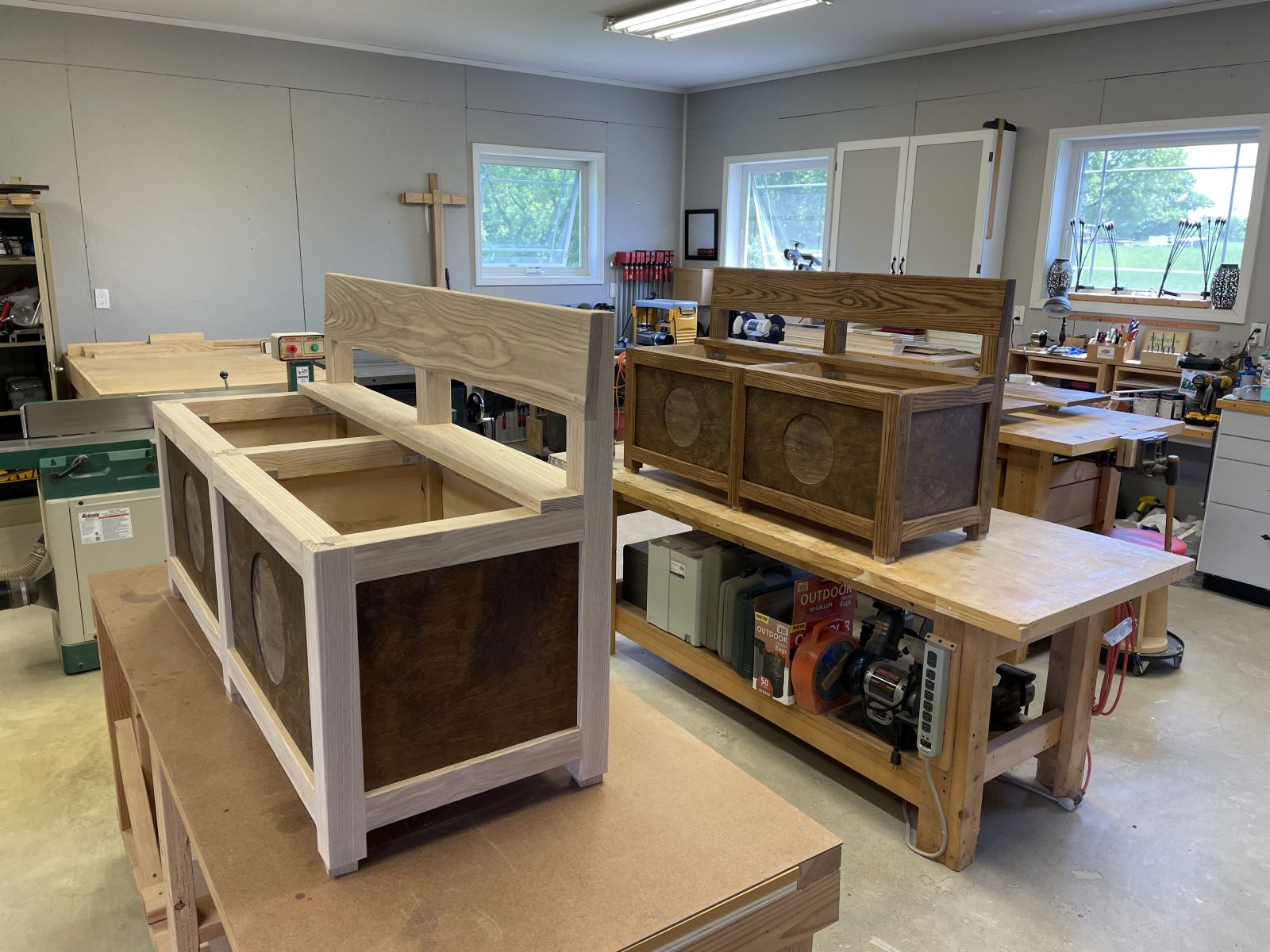

Two banquette frames ready for backrests and seat/lid installations
Two banquette frames ready for backrests and seat/lid installations

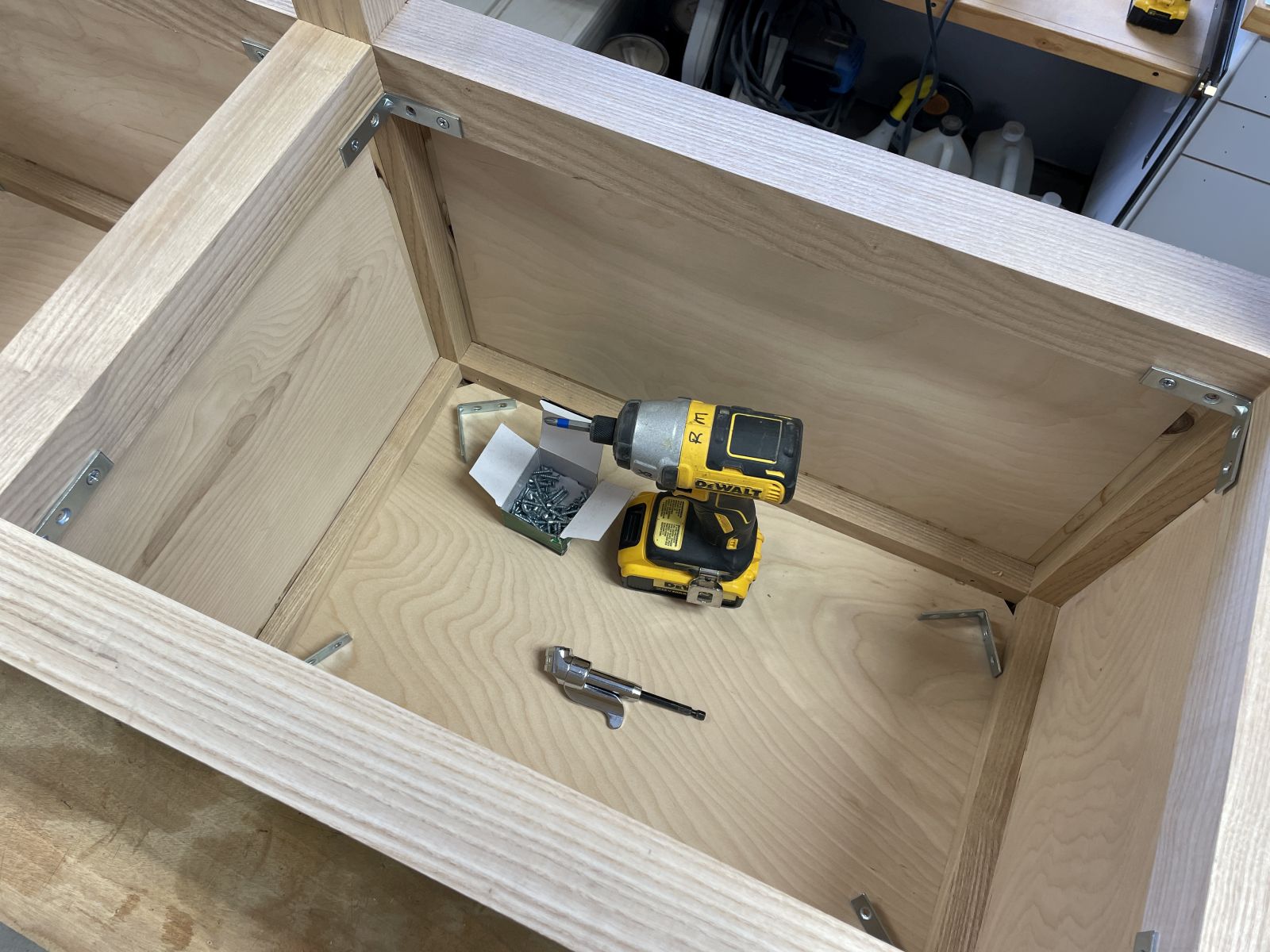

Corner bracket installation is a belt-and-suspenders measure
Corner bracket installation is a belt-and-suspenders measure

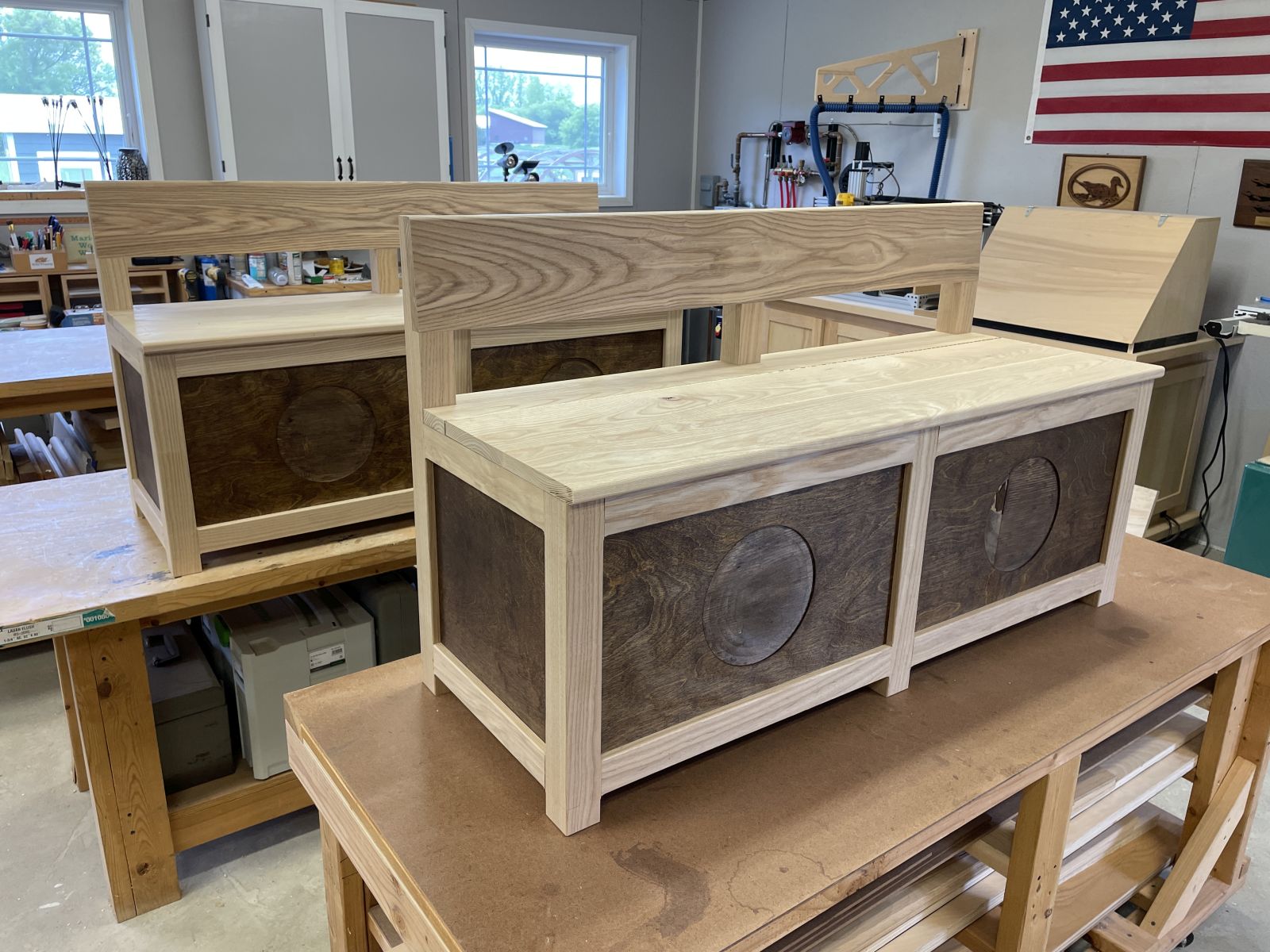

Backrests and seat/lids cut to fit and ready for installation
Backrests and seat/lids cut to fit and ready for installation
Test sit
Test sit
Pre-drilling holes for the continuous hinge on the fixed side of the seat/lid using a VIX bit in the drill
Pre-drilling holes for the continuous hinge on the fixed side of the seat/lid using a VIX bit in the drill
The VIX bit centers pilot holes to the hardware
The VIX bit centers pilot holes to the hardware

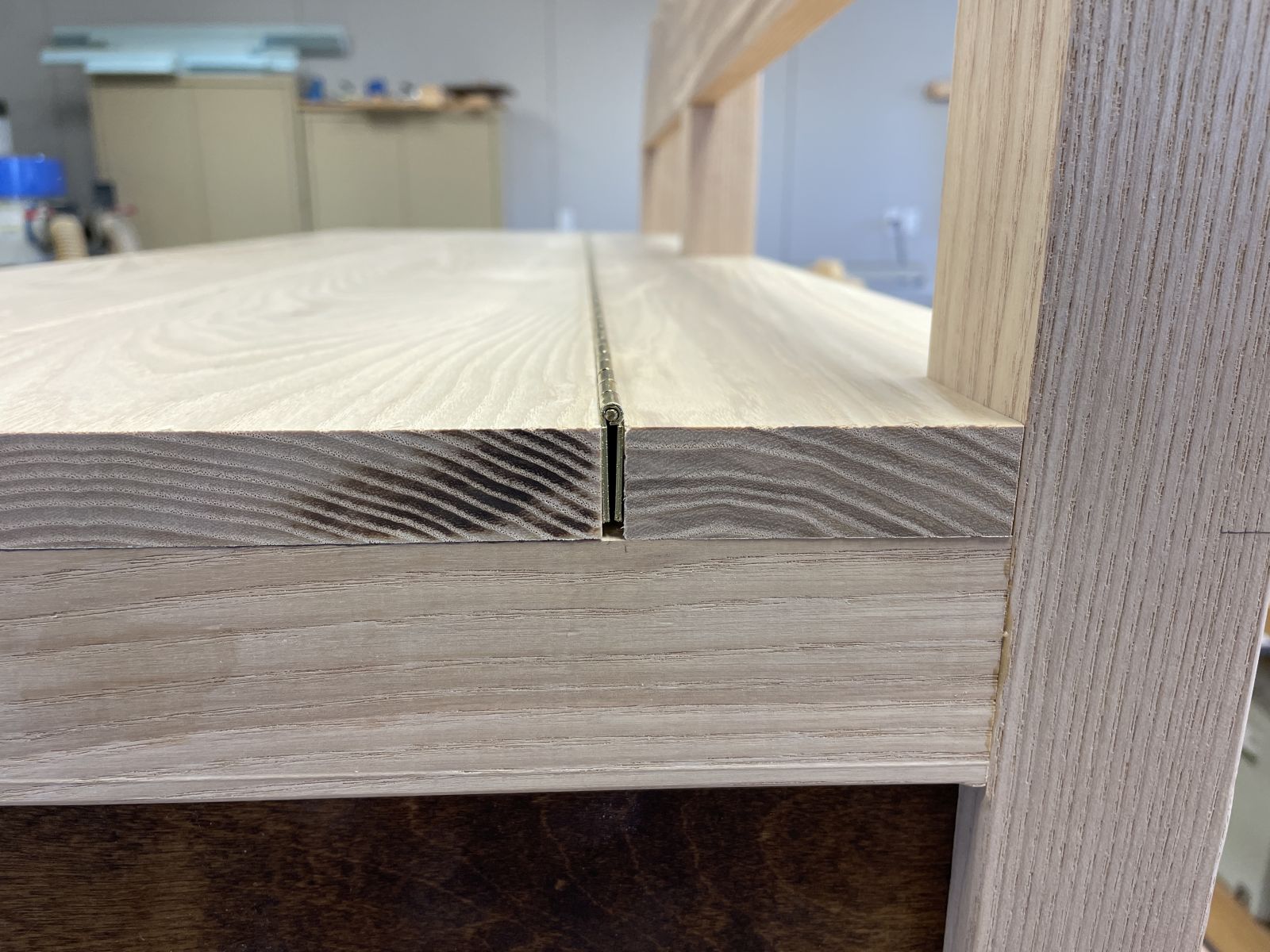

Continuous hinge installed and shown in the closed position
Continuous hinge installed and shown in the closed position

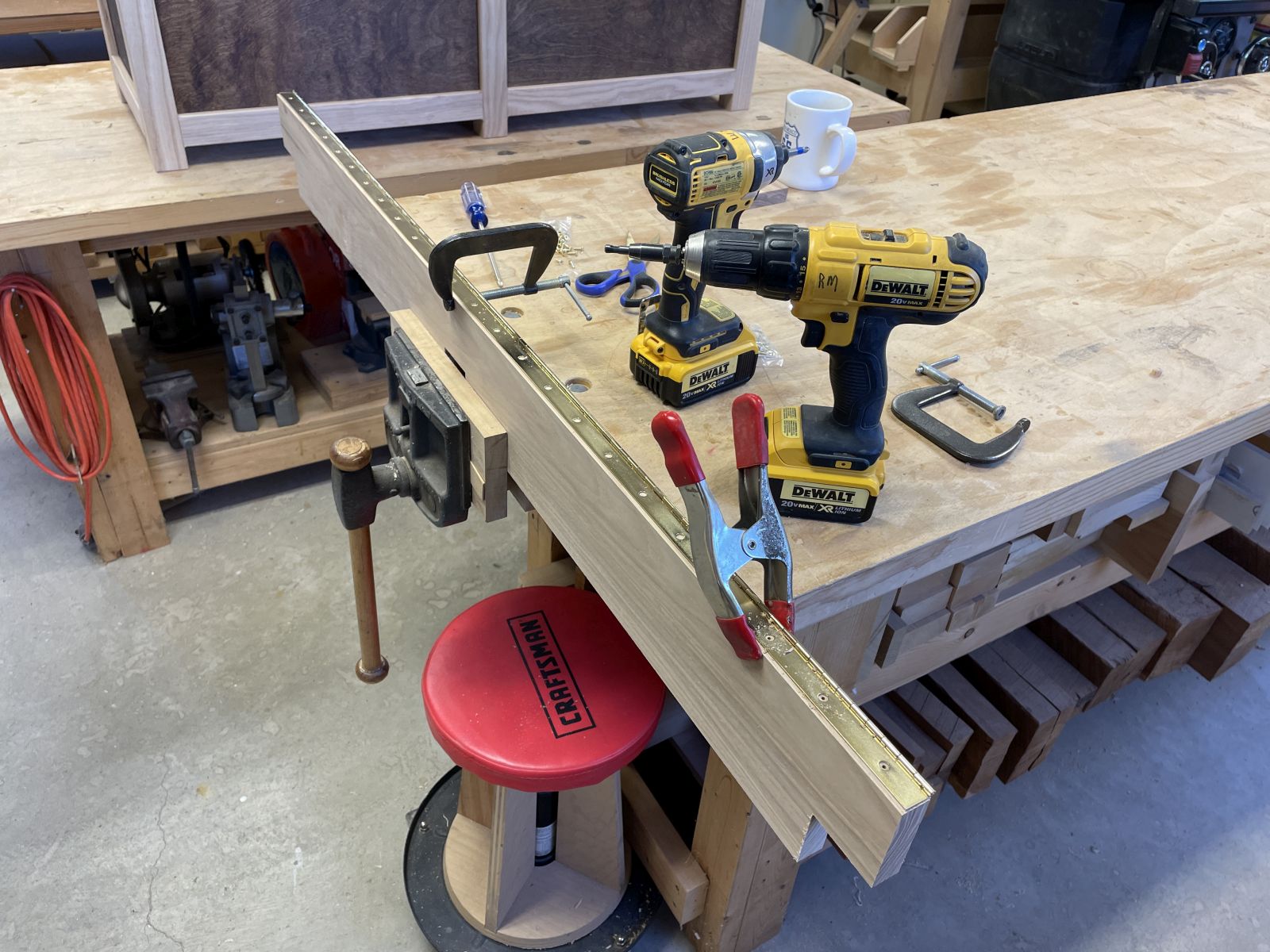

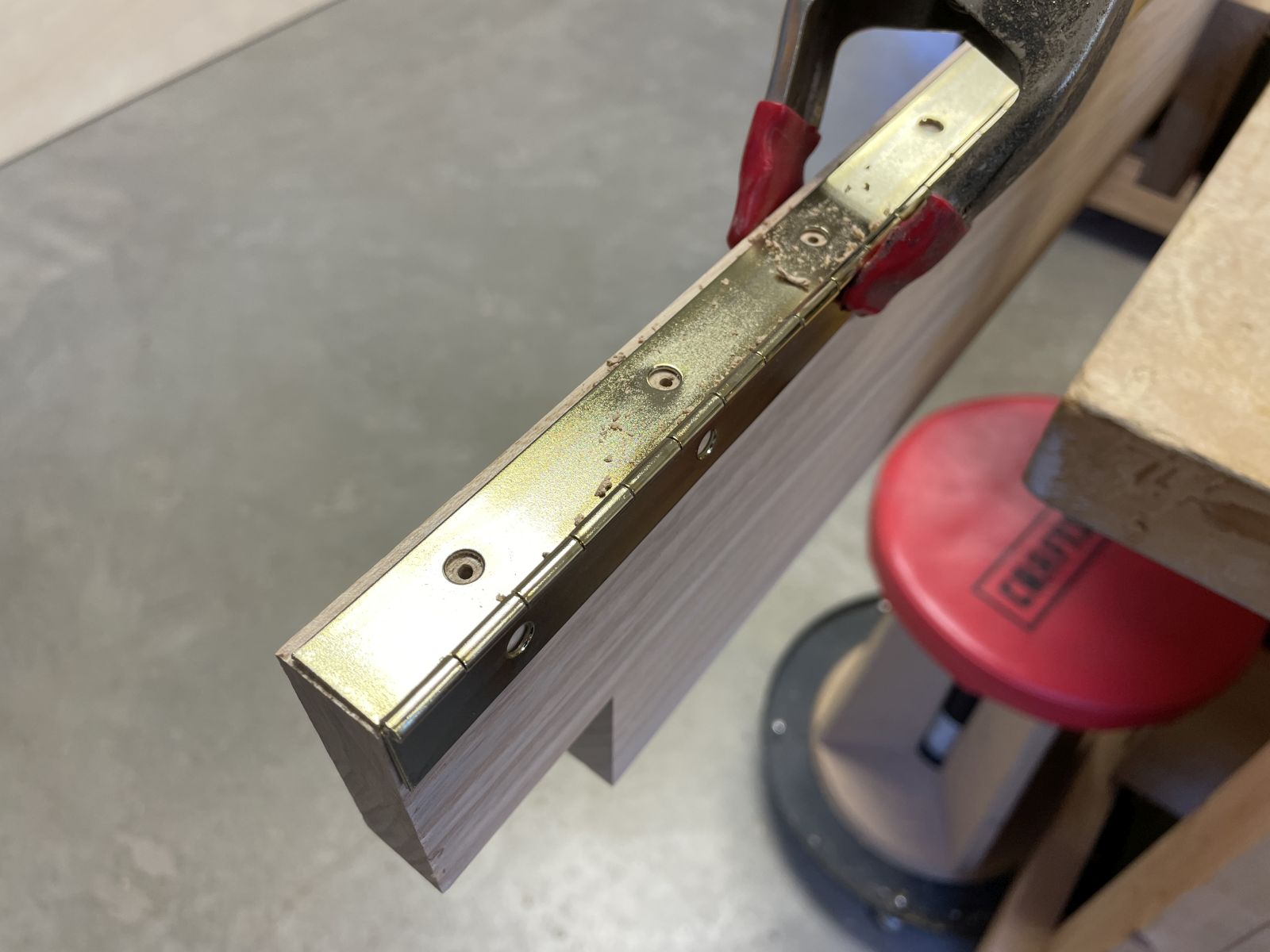

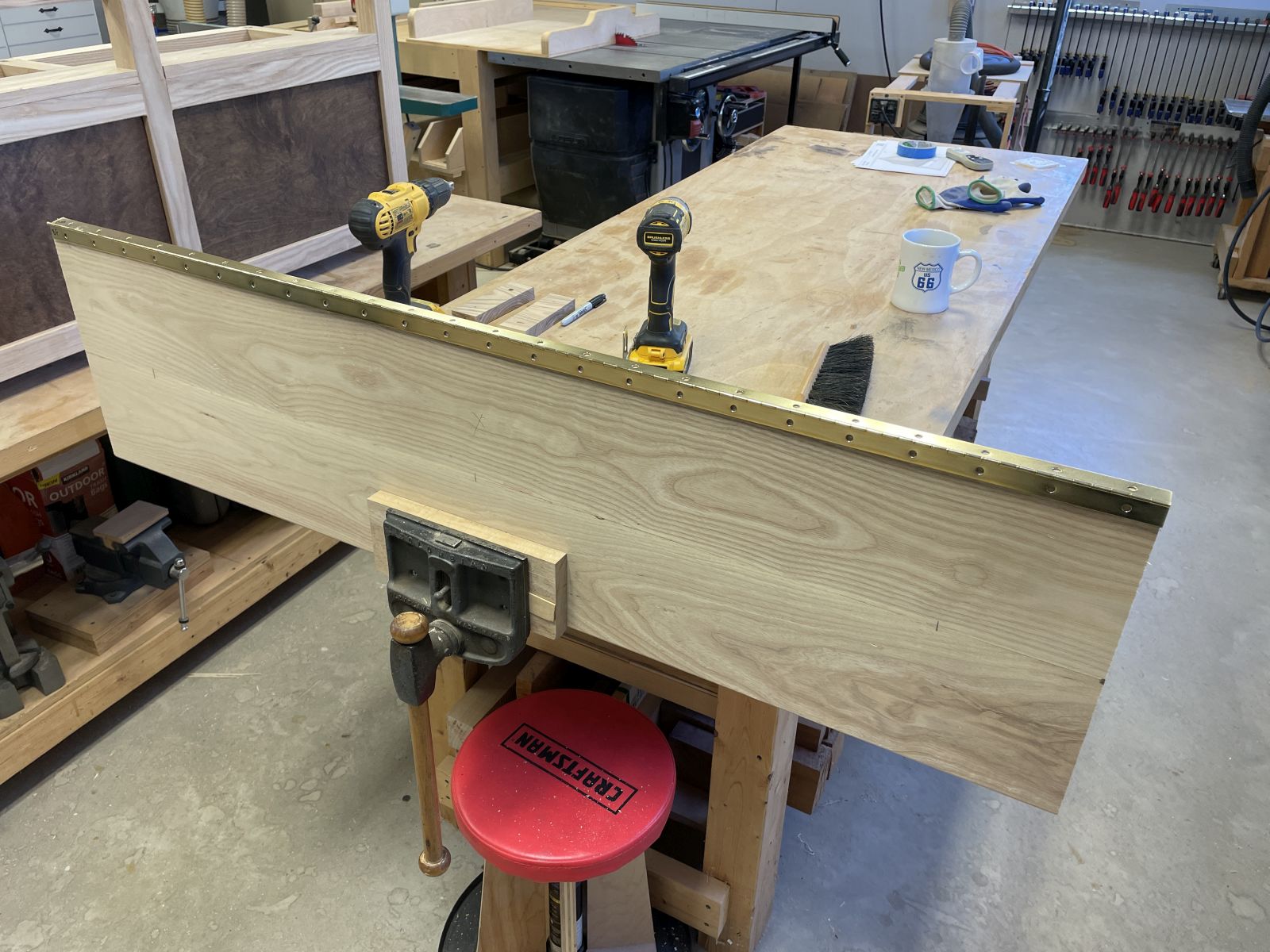

Installing the continuous hinge on the movable side of the seat/lid
Installing the continuous hinge on the movable side of the seat/lid

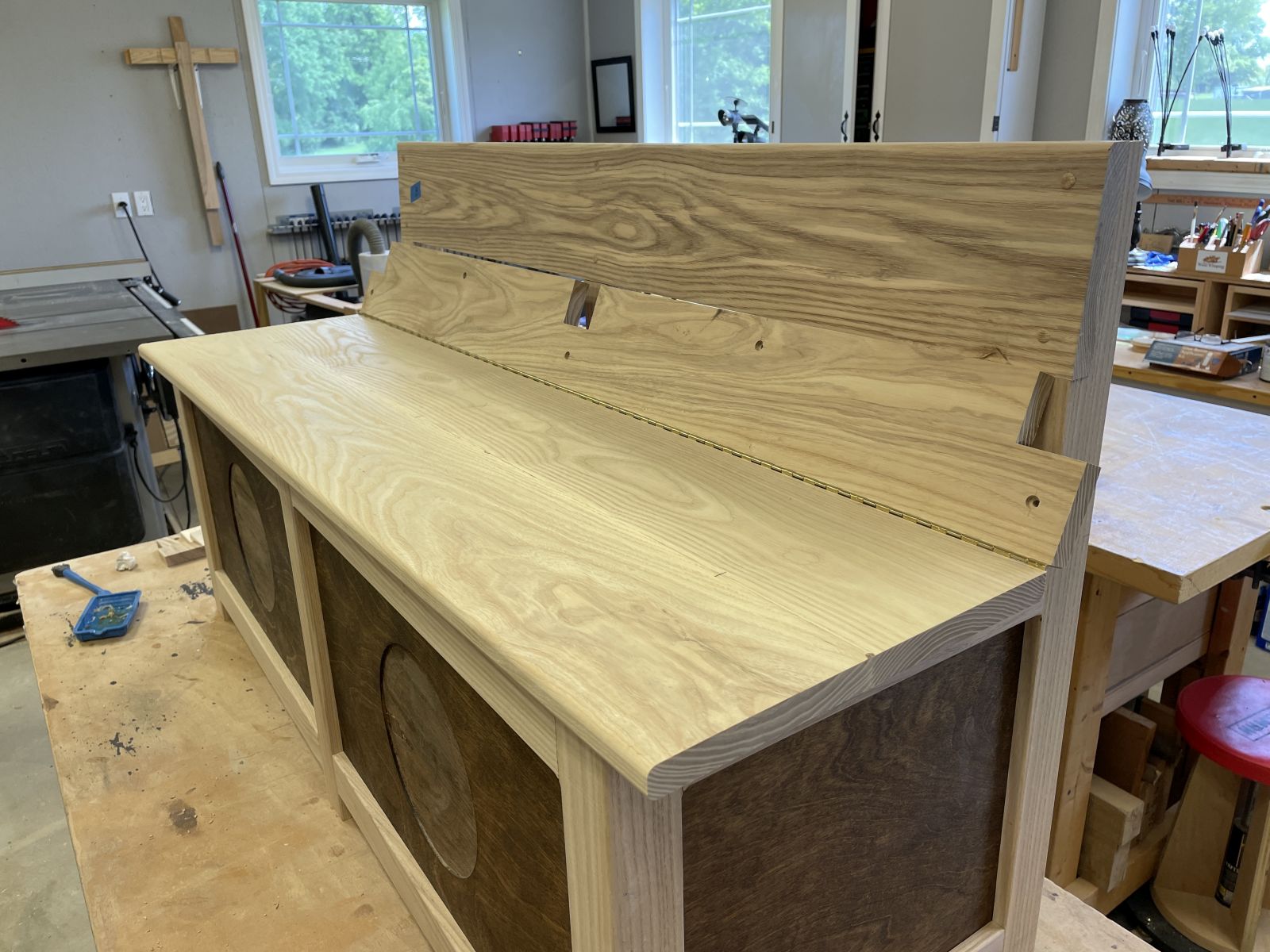

Ready to permanently install the fixed side of the seat/lid assembly
Ready to permanently install the fixed side of the seat/lid assembly

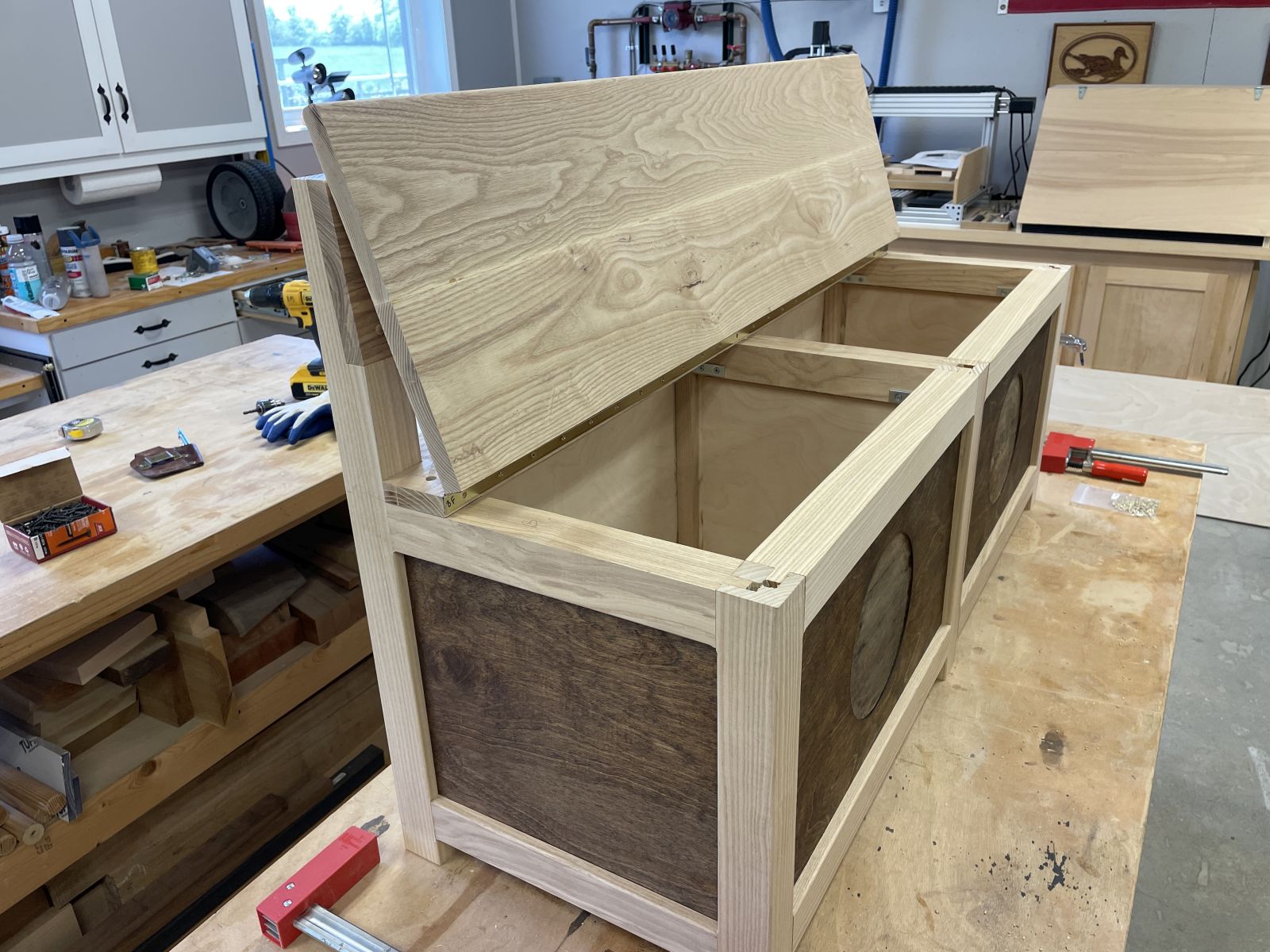

Seat/lid assembly shown in the open position
Seat/lid assembly shown in the open position
Completed assembly with the seat and hinge removed, ready for stain and polyurethane
Completed assembly with the seat and hinge removed, ready for stain and polyurethane

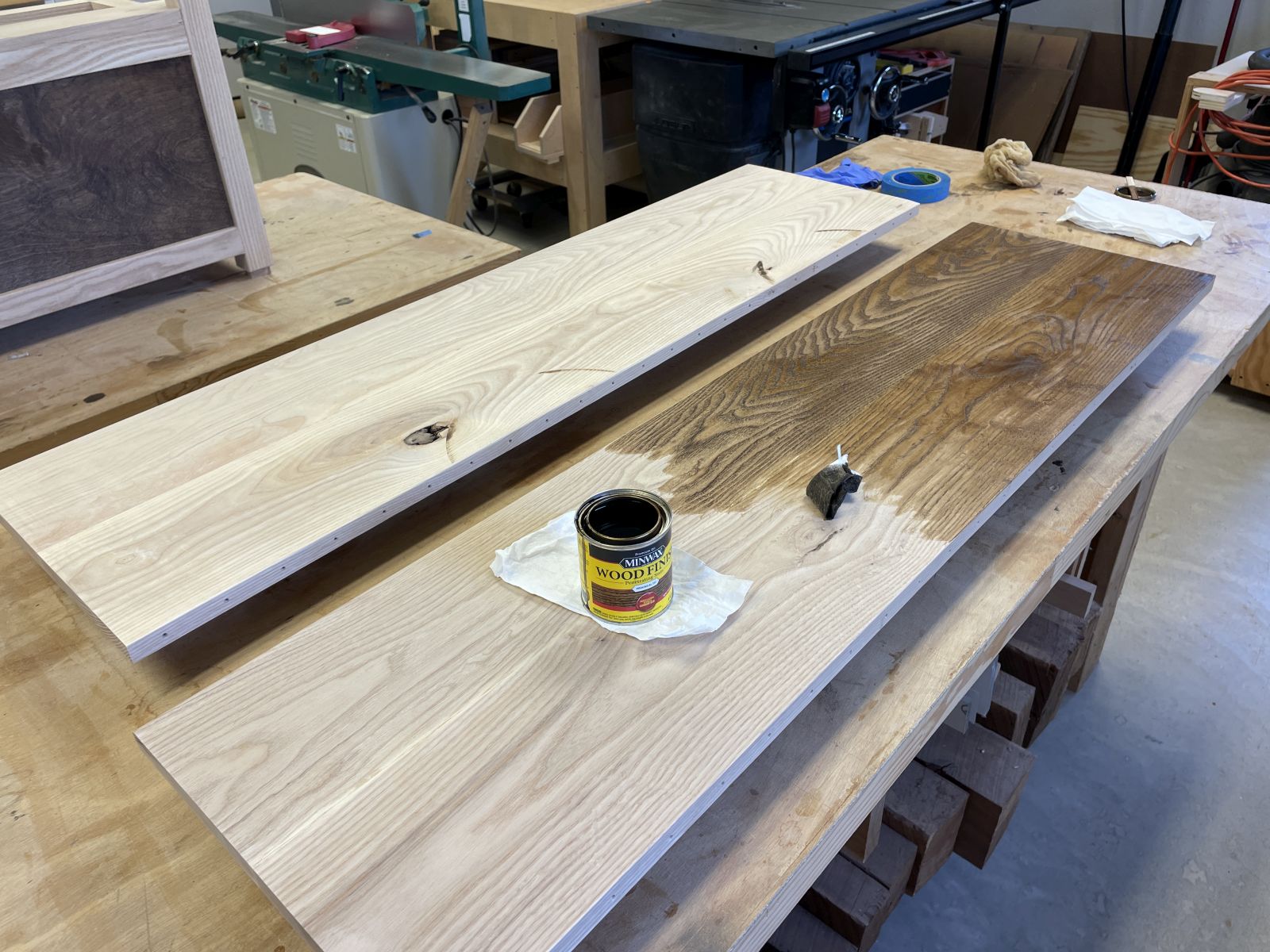

Staining the seats/lids
Staining the seats/lids

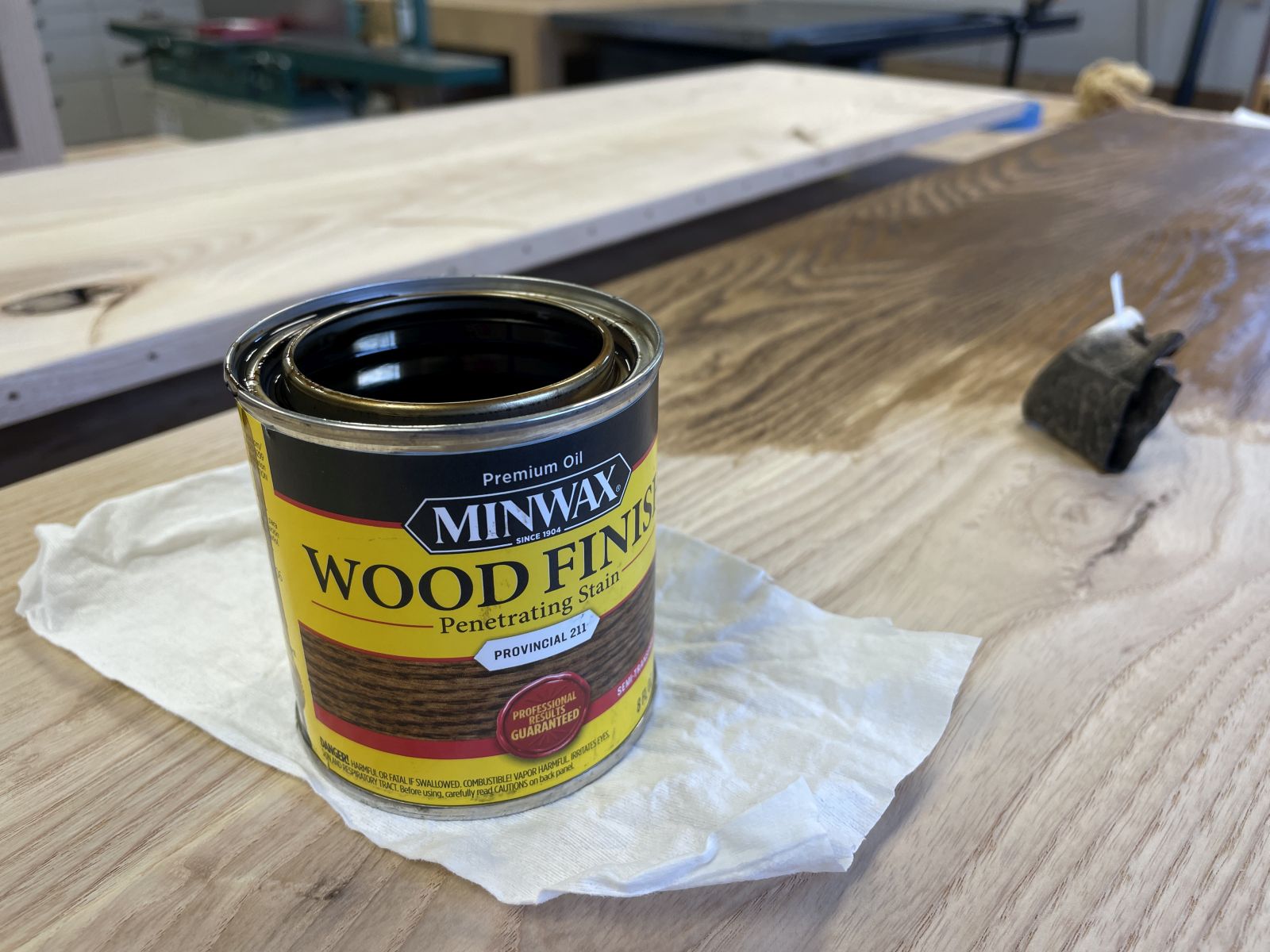

Photo documentation of the stain used is a great future reference
Photo documentation of the stain used is a great future reference
One stained, one to go
One stained, one to go

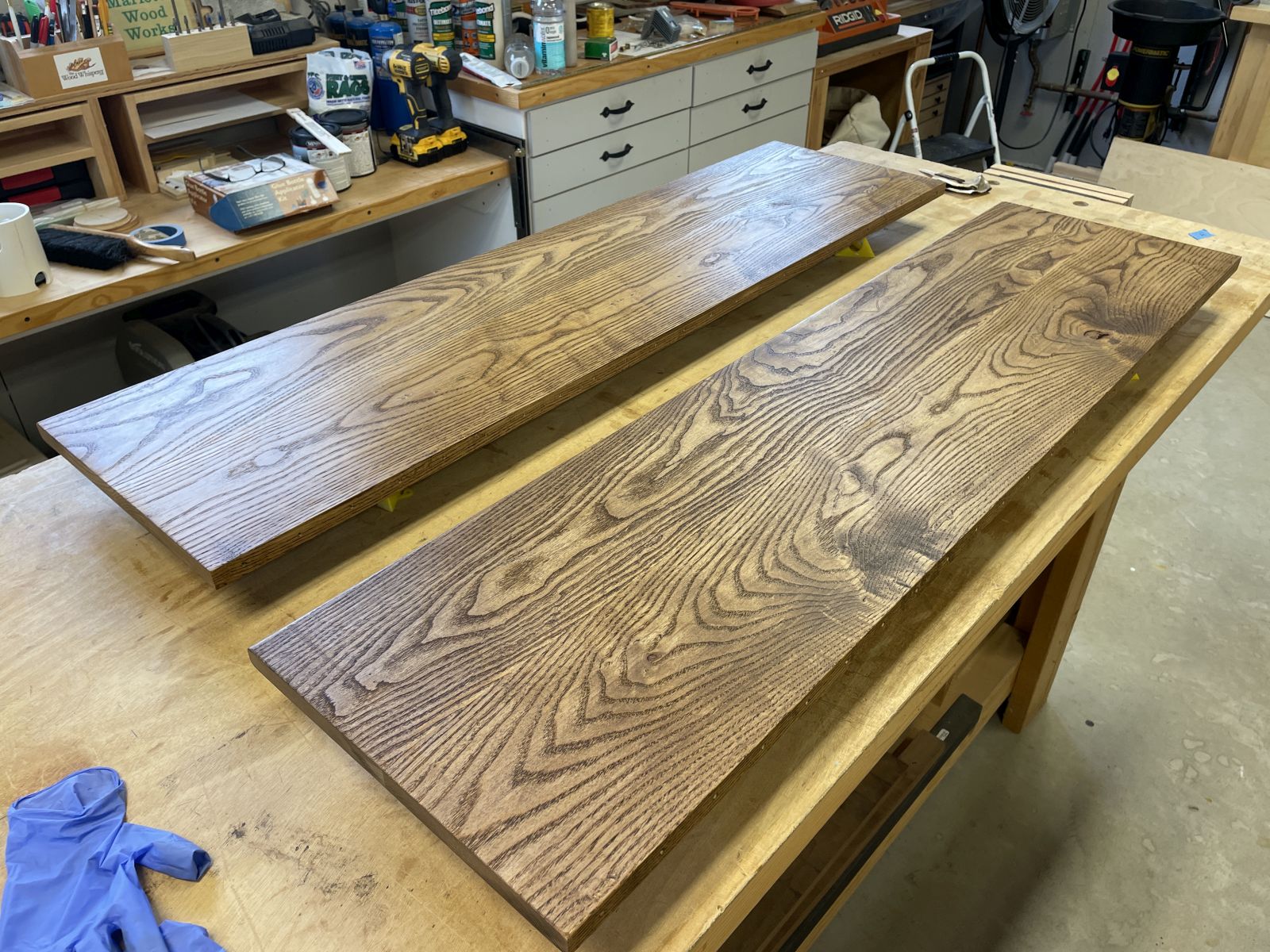

Fully stained seats/lids
Fully stained seats/lids
Second assembly fully stained
Second assembly fully stained

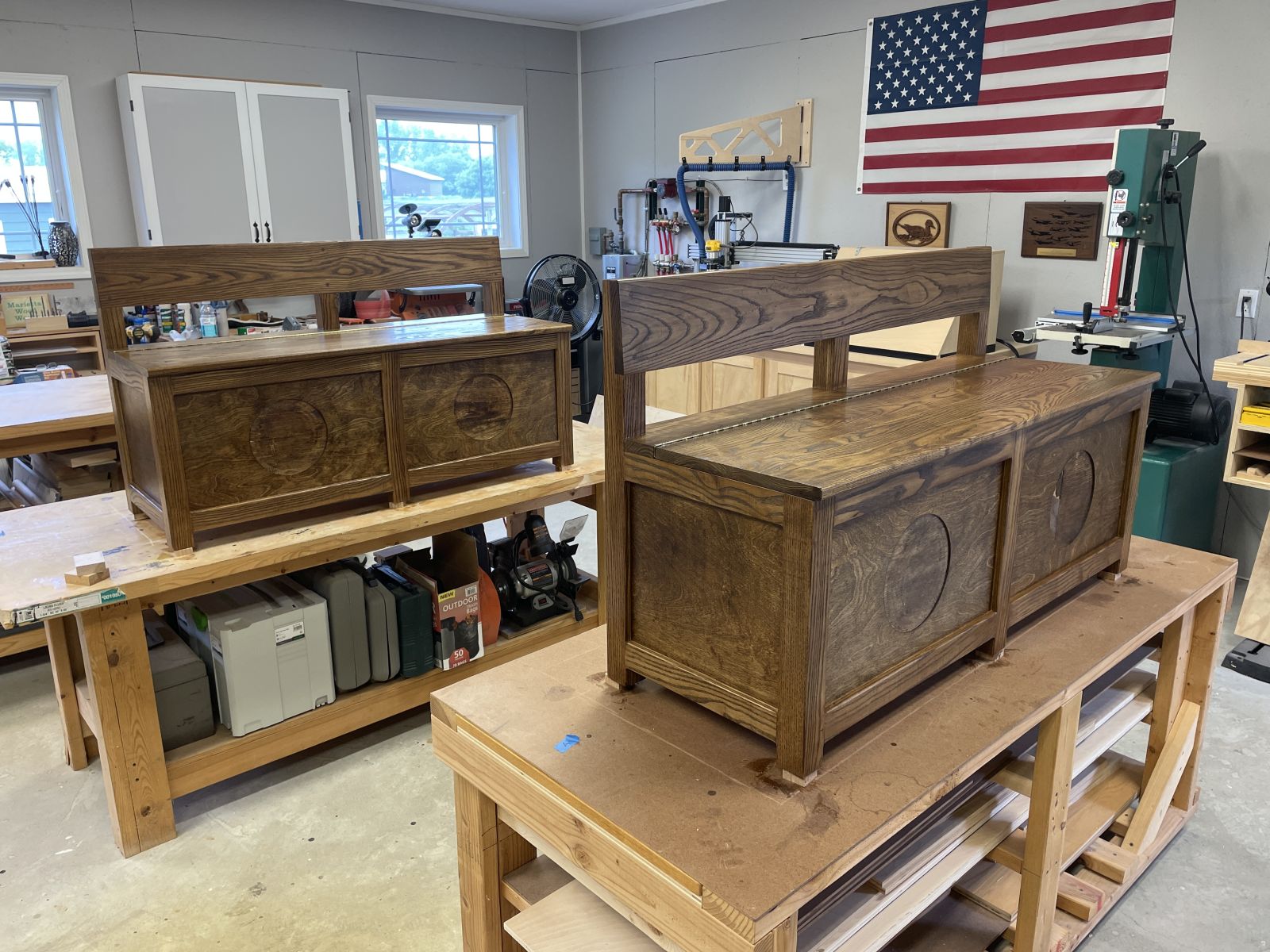

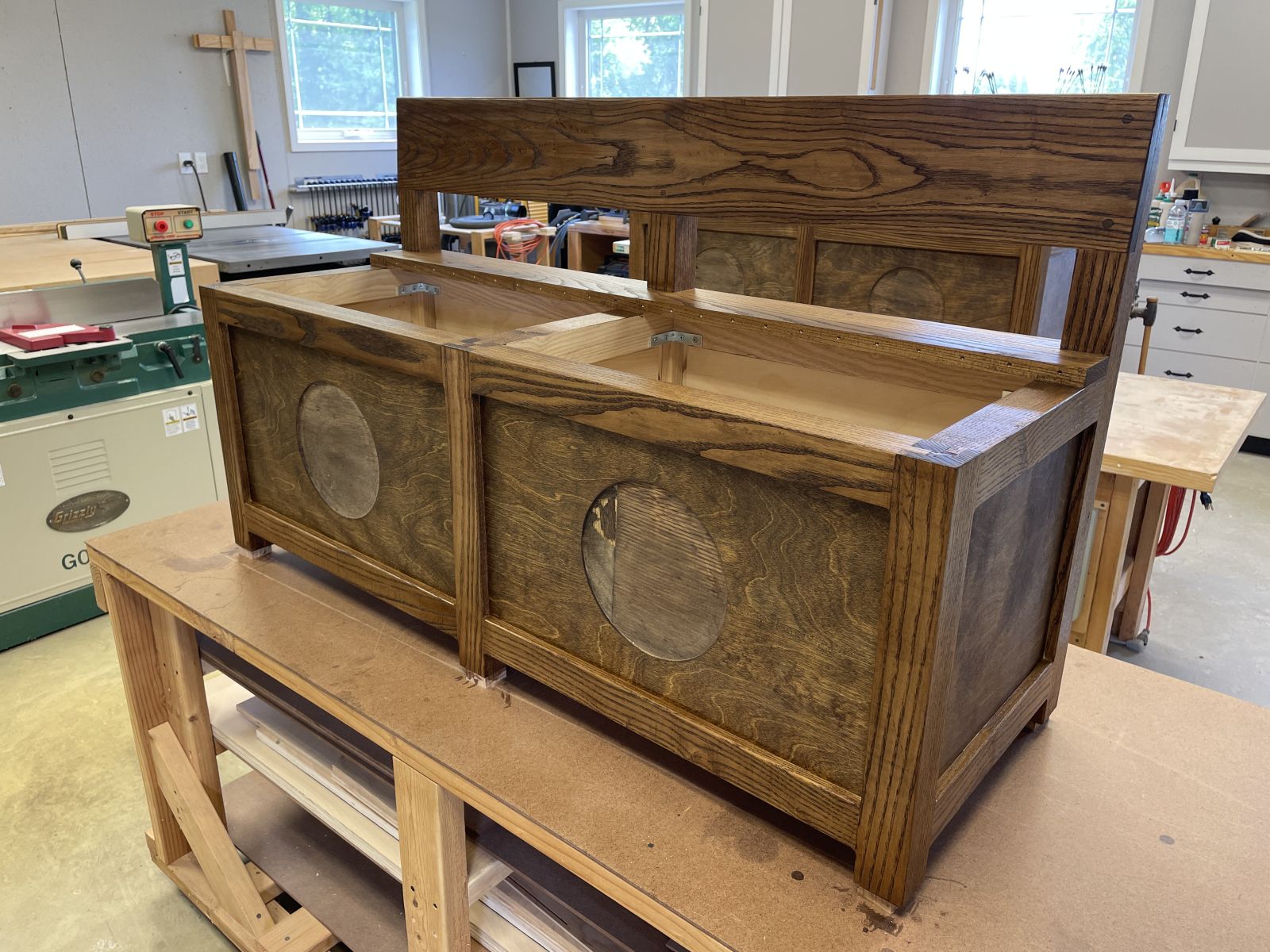

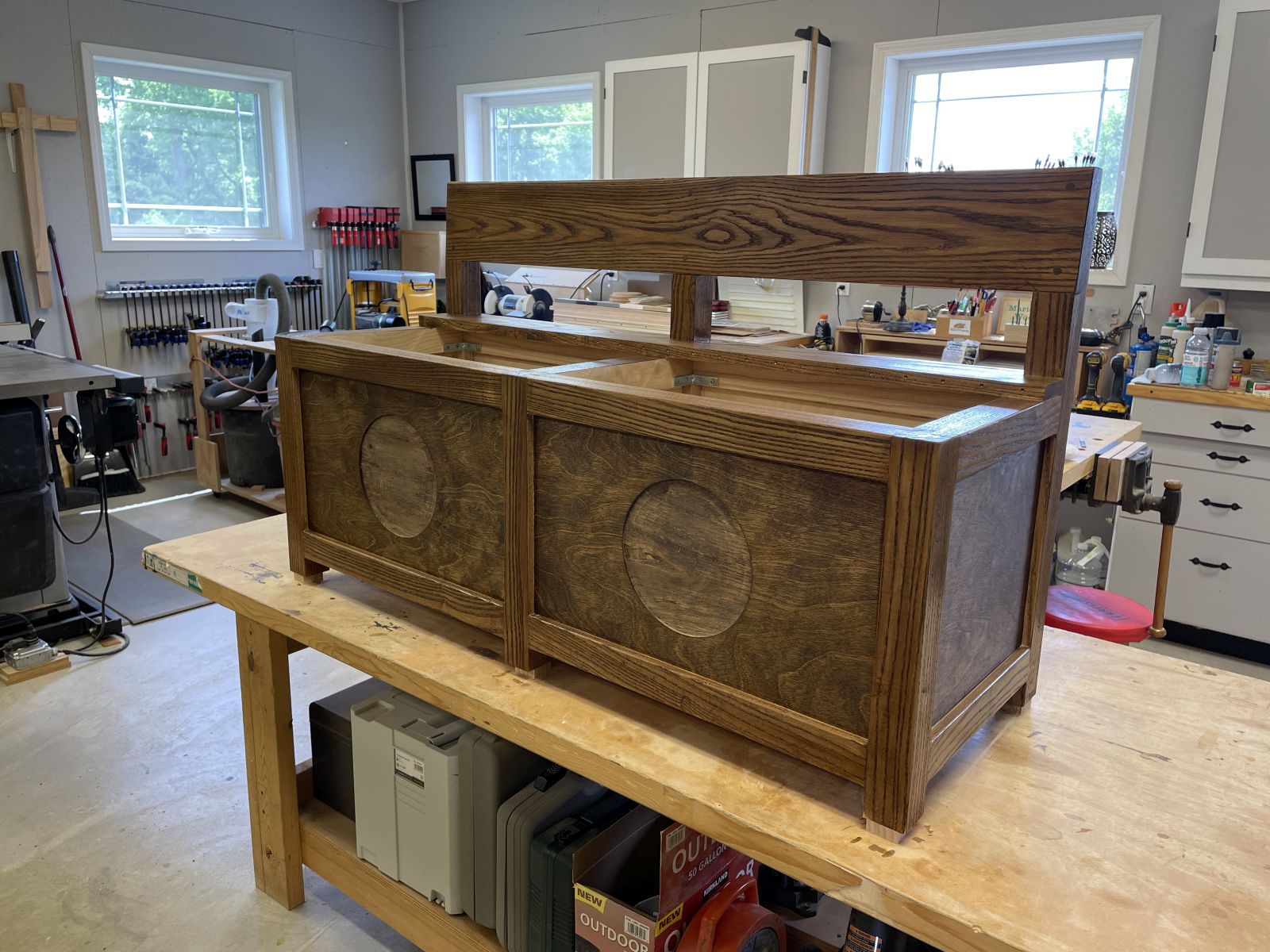

Stained and polyurethaned banquette, ready for final assembly
Stained and polyurethaned banquette, ready for final assembly

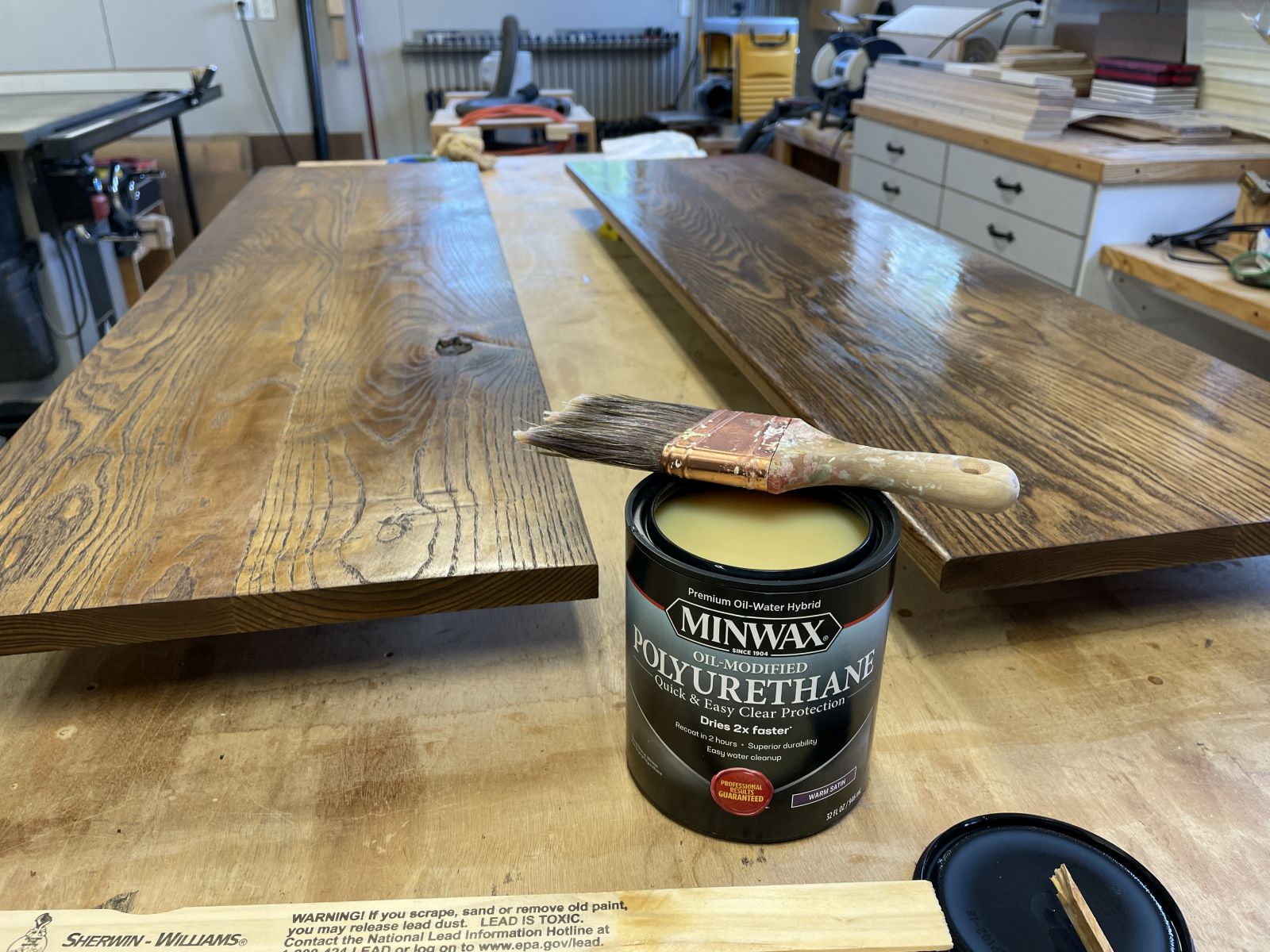

This oil-water hybrid polyurethane is low odor and very fast drying
This oil-water hybrid polyurethane is low odor and very fast drying
Two completed banquettes ready for delivery
Two completed banquettes ready for delivery

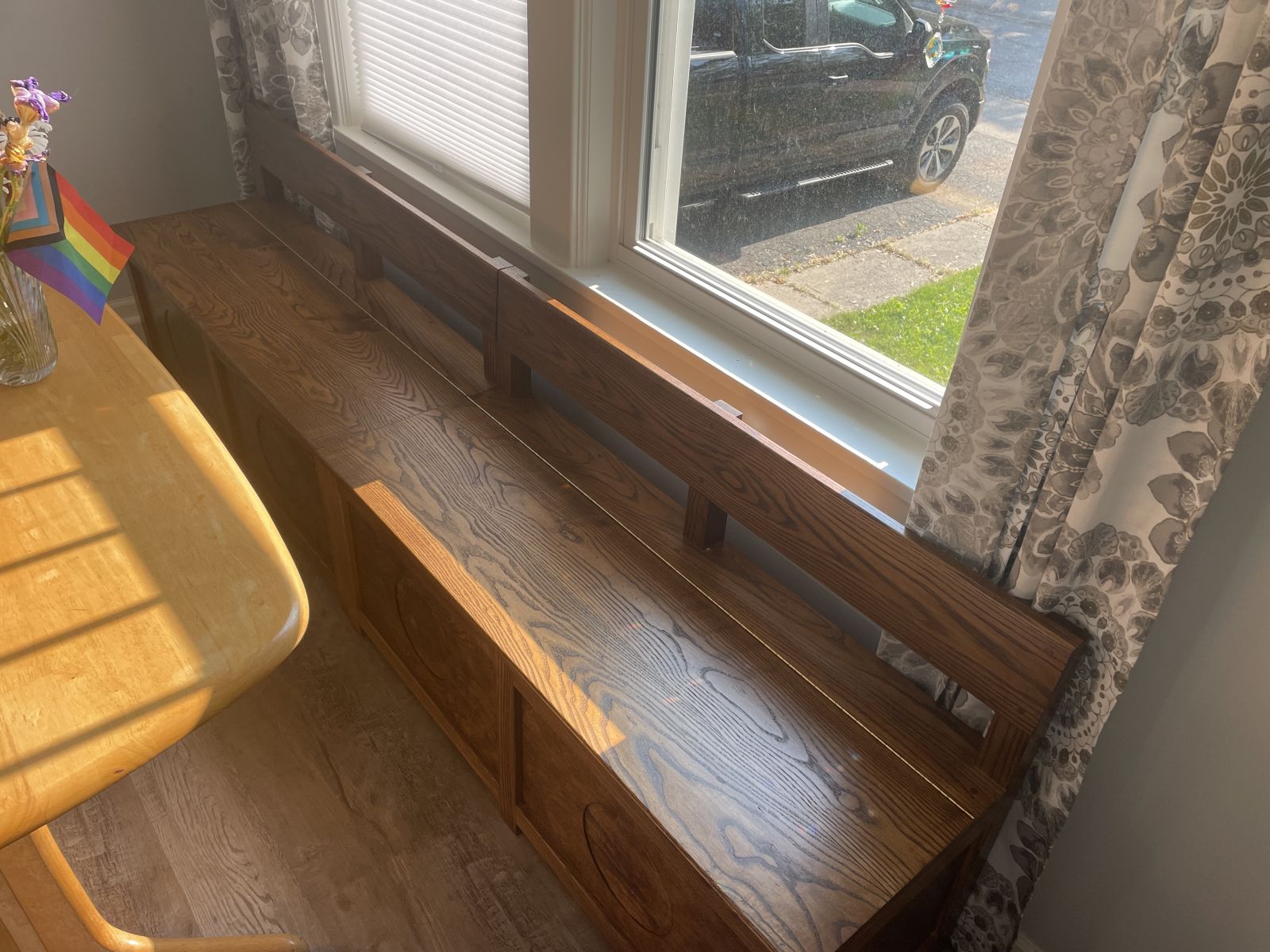

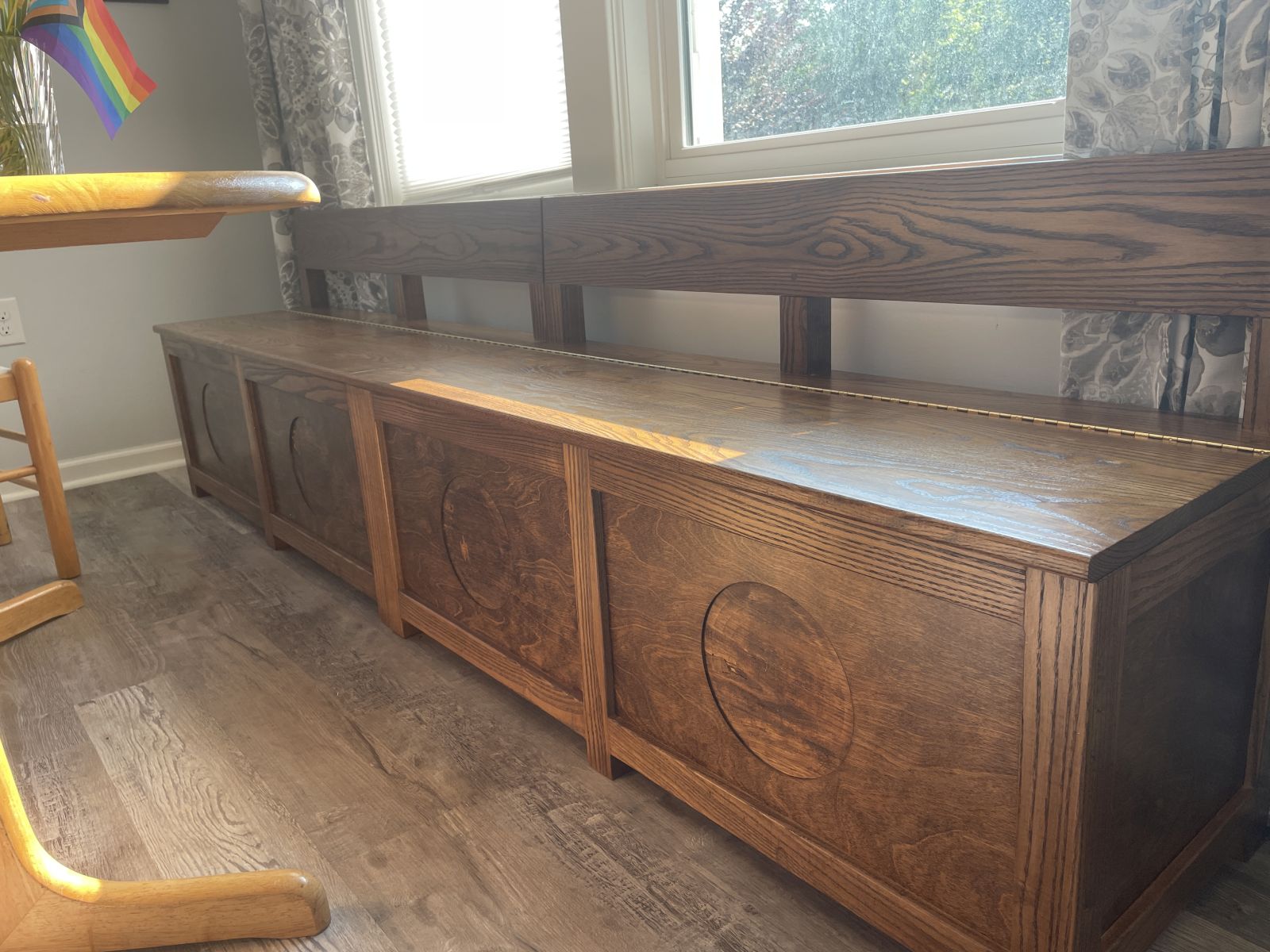

Two banquettes in their new home under the front window
Two banquettes in their new home under the front window
